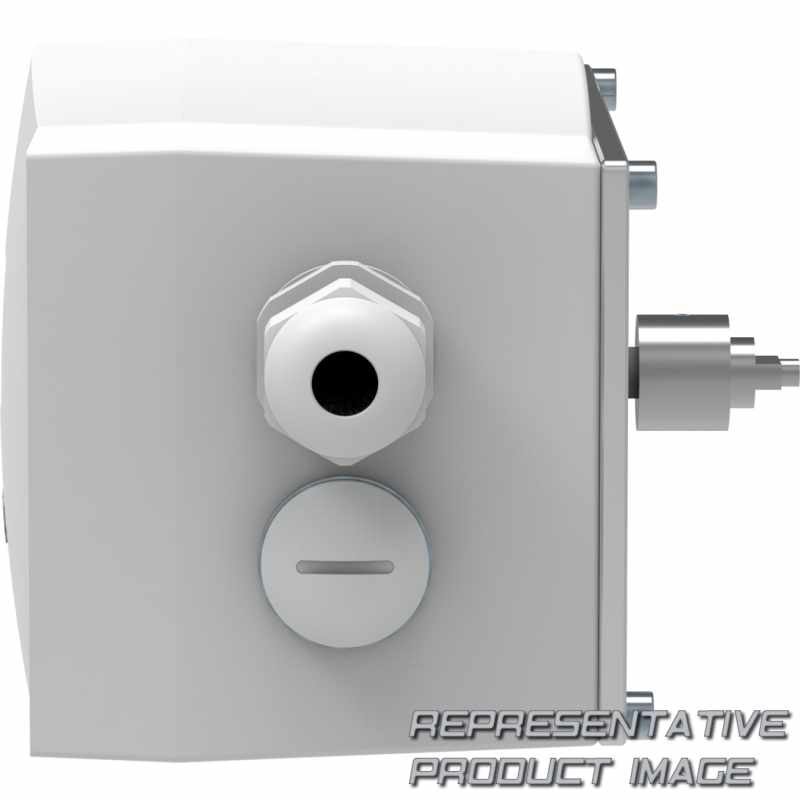

| Design | Digital, electropneumatic positioner | ||
| Design characteristics | Safety position – pneumatic outlet 4 exhausted Safety position – pneumatic outlet 2 pressurised | ||
| Type of mounting | With accessories | ||
| Display | 7-segment LCD display With backlighting | ||
| Size of dead zone | 0,5 % ... 10 % | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Standard nominal flow rate | 130 l/min | ||
| Nominal operating voltage DC | 24 V | ||
| Max. current consumption | 600 mA | ||
| digital input, signal range | 0 - 10 V 0 - 20 mA 4 - 20 mA | ||
| Analogue inputs, linearity error at 25 °C | 0.5% | ||
| Analogue inputs, resolution | 16 bit | ||
| Analogue inputs, electrical isolation | no | ||
| Analogue outputs, max. load impedance | ≤ 600 Ohm | ||
| Analogue outputs, temperature coefficient | < 0,02 %FS/K | ||
| Analogue outputs, reverse polarity protection | yes | ||
| Analog outputs, overload protection | yes | ||
| Characteristic for inputs | To IEC 61131-2, type 3 | ||
| Digital inputs, reverse polarity protection | yes | ||
| Digital outputs, reverse polarity protection | yes | ||
| Digital outputs, output current | 100 mA | ||
| Digital outputs, overload protection | yes | ||
| Electrical connection 1, function | 2x digital input 3x digital output Analogue output Analogue input Power supply Load power supply | ||
| Electrical connection 1, connector system | Screw terminal | ||
| Electrical connection 1, tightening torque | 0,6 Nm | ||
| Cable fitting | M20 x 1.5 for electrical connection 1 | ||
| Max. cable length | 30 m for electrical connection 1 | ||
| Storage temperature | -20 °C ... 60 °C | ||
| Degree of protection | IP65 | ||
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 As per EN 60068-2-29 | ||
| Pollution degree | 3 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Material housing | PC-reinforced | ||
| Material base plate | Wrought aluminium alloy Anodised | ||
| Material coupling | High-alloy stainless steel | ||
| Material seals | NBR | ||
| Material blanking plug | PA | ||
| Note on materials | RoHS-compliant | ||
| Dimensions (W x L x H) | 190 mm x 105 mm x 130 mm |
| Mode of operation | Double-acting | ||
| Mounting position | optional | ||
| Functional principle of measuring system | Potentiometer | ||
| Setting options | Via display and keys | ||
| Operating pressure | 43,5 psi ... 116 psi | ||
| Note on operating and pilot medium | Lubricated operation not possible | ||
| Pneumatic connection | G1/8 | ||
| Operational voltage range DC | 21,6 V ... 26,4 V | ||
| Reverse polarity protection | For operating voltage connections | ||
| Analogue inputs, max. dynamic range | 0 - 24 mA 0 - 11 V | ||
| Analogue inputs, temperature coefficient | < 0,02 %FS/K | ||
| Analog inputs, overload protection | yes | ||
| digital output, signal range | 4 - 20 mA | ||
| Analogue outputs, linearity error at 25°C | 0.5% | ||
| Analogue outputs, resolution | 12 bit | ||
| Analog outputs, short circuit current rating | yes | ||
| Analogue outputs, galvanic isolation | no | ||
| Switching input | PNP NPN | ||
| Digital inputs, electrical isolation | Yes, via optocoupler | ||
| Switching output | 3 x PNP or 3 x NPN, switchable | ||
| Digital outputs, short circuit current rating | yes | ||
| Digital outputs, electrical isolation | Yes, via optocoupler | ||
| Electrical connection 1, connection type | Terminal strip | ||
| Electrical connection 1, number of connections/cores | 14 | ||
| Electrical connection 1, conductor cross section | < 1,5 mm² | ||
| Permissible cable diameter | 7 - 13 mm for electrical connection 1 | ||
| Ambient temperature | -5 °C ... 60 °C | ||
| Relative air humidity | 93% | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 As per EN 60068-2-6 | ||
| Approval | RCM trademark | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Material screen | PC | ||
| Material shaft | High-alloy stainless steel | ||
| Material screws | High-alloy stainless steel | ||
| Material cable gland | PA | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Product weight | 970 g |
