| compressed air connection pilot exhaust | base plate iso 5599-1 | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| Tipo de conexión | plate connection | ||
| valve type | spool valve, positive overlapping | ||
| Estándares | iso 5599-1 | ||
| Principio de sellado | soft seal | ||
| electr. connection | 3-pin | ||
| electrical connection type | plug | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 10 bar | ||
| compressed air connection output | base plate iso 5599-1 | ||

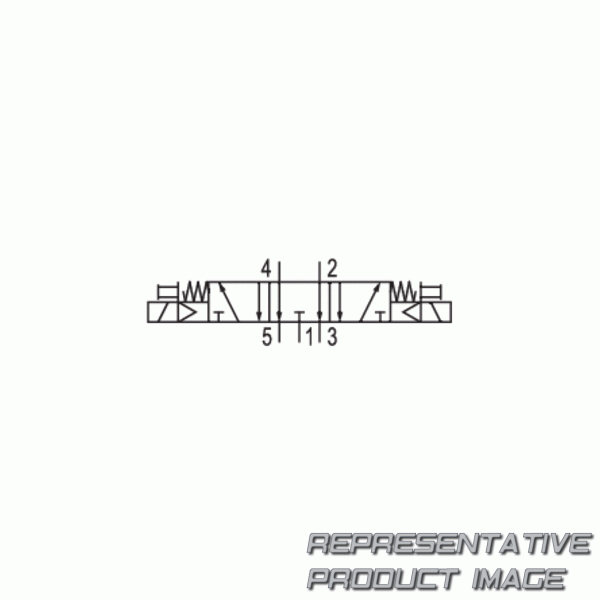

| switching principle | 5/3 | ||
| activation | electrically |
| compressed air connection pilot input | base plate iso 5599-1 | ||
| compressed air connection input | base plate iso 5599-1 | ||
| blocking principle | single base plate principle | ||
| pilot valve width | 15 mm | ||
| pilot | internal | ||
| actuating control | double solenoid | ||
| electrical connection size | m12 | ||
| Accionamiento manual auxiliar | without detent | ||
| dc operating voltage | 24 v | ||
| working pressure min. | 2.5 bar | ||
| Modelo | exhausted center | ||
| nominal flow qn | 880 l/min |
