| flow conductance c | 15.5 l/(s*bar) | ||

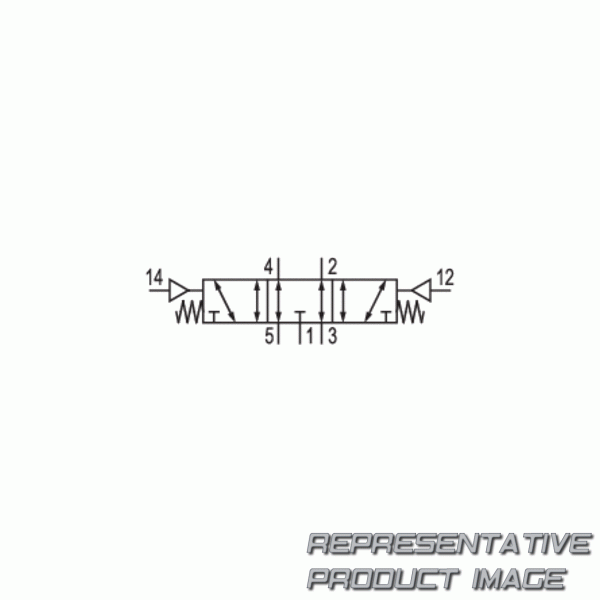

| version pneumatic port | exhausted center | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Medio | compressed air | ||
| min. medium temperature | -20 °c | ||
| min. ambient temperature | -20 °c | ||
| control pressure min. | 3 bar | ||
| can be assembled into blocks | can be assembled into blocks | ||
| valve type | spool valve | ||
| Principio de sellado | soft seal | ||
| working pressure min. | -0.95 bar | ||
| compressed air connection output | base plate iso 5599-1 | ||
| activation | pneumatically |
| compressed air connection input | base plate iso 5599-1 | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| max. particle size | 50 µm | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| control pressure max. | 16 bar | ||
| blocking principle | single base plate principle | ||
| Modelo | iso 4 | ||
| Estándares | iso 5599-1 | ||
| working pressure max | 16 bar | ||
| Tipo de conexión | plate connection | ||
| nominal flow qn | 5000 l/min |
