| frame size | 18 mm | ||
| compressed air connection pilot exhaust | vdma 02 base plate | ||
| compressed air connection input | vdma 02 base plate | ||
| Tipo de conexión | plate connection | ||
| valve type | spool valve, positive overlapping | ||
| Estándares | iso 15407-1 | ||
| Principio de sellado | soft seal | ||
| electr. connection | 3-pin | ||
| electrical connection type | plug | ||
| voltage tolerance dc | -15% / +20% | ||
| working pressure max | 10 bar | ||
| compressed air connection output | vdma 02 base plate | ||
| nominal flow qn | 450 l/min |
| power consumption dc | 0.35 w | ||
| compressed air connection, exhaust | vdma 02 base plate | ||
| return | with spring/air spring return | ||
| blocking principle | base plate principle, multiple | ||
| pilot valve width | 15 mm | ||
| pilot | external | ||
| actuating control | double solenoid | ||
| electrical connection size | m12 | ||
| Accionamiento manual auxiliar | without detent | ||
| dc operating voltage | 24 v | ||
| working pressure min. | -0.8 bar | ||

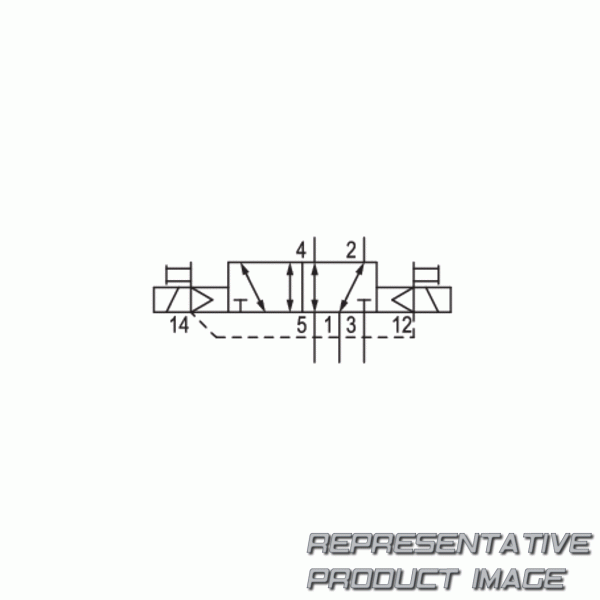

| switching principle | 5/2 |
