| Medio | compressed air | ||
| min. medium temperature | -15 °c | ||
| min. ambient temperature | -15 °c | ||
| control pressure min. | 1.5 bar | ||
| Tipo de conexión | pipe connection | ||
| pilot valve width | 22.5 mm | ||
| Principio de sellado | soft seal | ||
| electrical connection size | en 175301-803, form c | ||
| Accionamiento manual auxiliar | with detent | ||
| dc operating voltage | 24 v | ||
| working pressure min. | 1.5 bar | ||

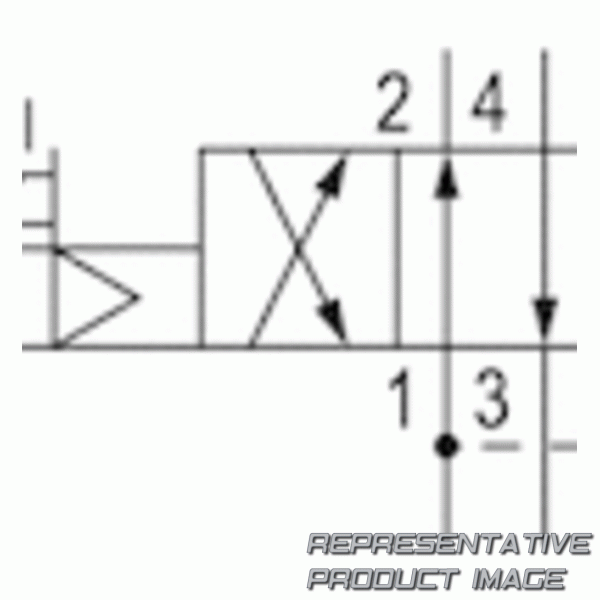

| switching principle | 4/2 | ||
| activation | electrically |
| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| control pressure max. | 10 bar | ||
| return | with air spring return | ||
| valve type | diaphragm poppet valve | ||
| pilot | internal | ||
| actuating control | single solenoid | ||
| electrical connection type | plug | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 10 bar | ||
| compressed air connection output | 1/4″ nptf | ||
| nominal flow qn | 200 l/min |
