| protection type ip (max. with suitable connector) | ip65/67 | ||
| electrical connection material | stainless steel | ||
| electrical connection sort | plug - m12 | ||
| generation | revision 3 | ||
| Tipo | 8.691 | ||
| valve diameter | 3 mm | ||
| certification type | ul listed culus | ||
| temperature environment max | 55 °c | ||
| dc voltage | yes | ||
| voltage max / rated voltage | 30 v | ||
| port connection 1 thread type | g | ||
| port connection 1 type | inner thread | ||
| manual actuation | yes | ||
| for actuator size 90mm | yes | ||
| end position feedback bottom | green | ||
| end position feedback external | 0 pce | ||
| Customscode | 90268020 |
| communication interface protocol | io-link port class a + service-büs | ||
| electrical connection type | male | ||
| Mounting type | element drive | ||

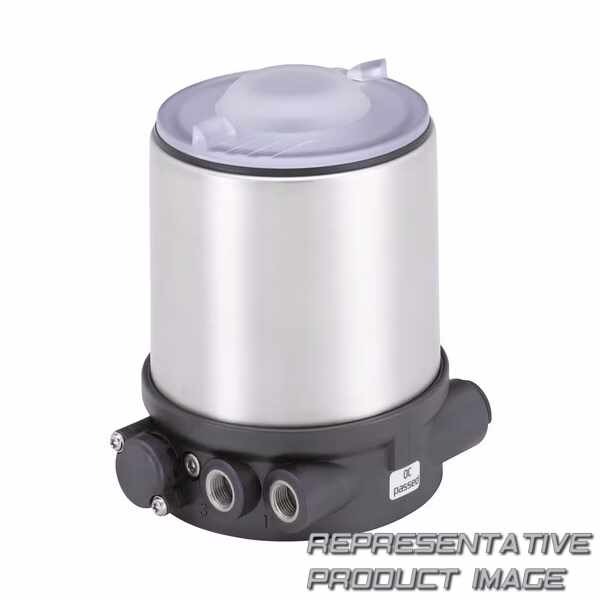

| product sub-group | control head / position indicator | ||
| Función | control head | ||
| qnn value (gas) | 250 l/min | ||
| approval type | ul | ||
| temperature environment min | -10 °c | ||
| supply via bus | yes | ||
| voltage min / rated voltage | 18 v | ||
| port connection 1 thread marking | 1/8 | ||
| pneumatic function 1 single acting | yes | ||
| for actuator size 130mm | yes | ||
| for actuator size 70mm | yes | ||
| end position feedback top | yellow | ||
| end position feedback internal | 2 pce |
