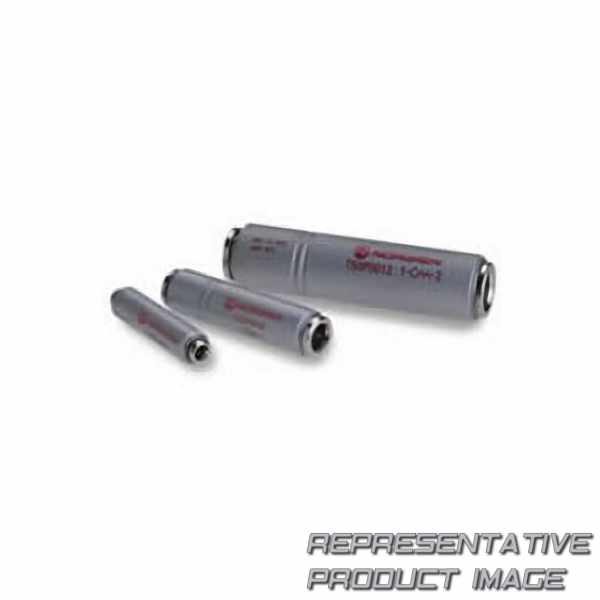

NORGREN T50P0006 non-return valve

Name: T50P0006 NORGREN
Brand: NORGREN
SKU: 779435-en-usd
Price: 64.38 USD
Availability: InStock

$64.38 ~~$128.76~~ -50%

2 pcs. with 1 to 3 days delivery to United States

Specifications

max. pressure	-0.9 ... 16 bar

Seal	silicon free nitrile

body		aluminium
data performance shelf life		3 years
flow flow dm3sec		11 dm3/sec
flow kv flow kv		0.44 kv
materials		nickel plated brass
mil spec		available on request
operating pressure pressure bar min to max range		-0.9 ... 16 bar
operating temperature f temperature fahrenheit min to max range		-4 ... 176 °f
oring		nbr (silicone free)
product style		accessories
seal material		silicon free nitrile
tube sizes length millimetre		6 mm

cracking pressure pressure bar		0.03 bar
eu country of origin		china
flow flow litresperminute		660 l/m
grabring		nickel plated brass
Medium		compressed air
od tube length millimetre		6 mm
operating pressure psi pressure psi min to max range		-13 ... 232 psi
operating temperature temperature celsius min to max range		-20 ... 80 °c
Port size		6mm
range		t50
springs		stainless steel
