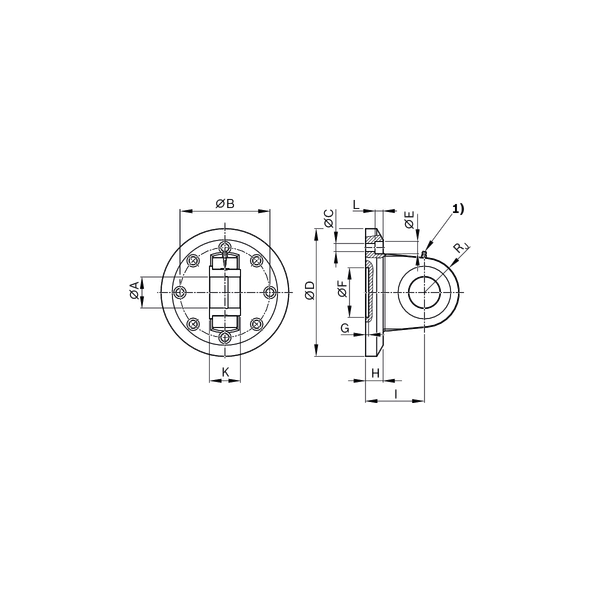

1)
Lube nipple, hydraulic type A as per DIN 71412
| A | 32 | mm | |
| C | 9 | mm | |
| e | 15 | ||
| G | 5 | mm | |
| i | 65 | ||
| L | 9 | mm |
| B | 100 | ||
| D | 162 | mm | |
| F | 60 | mm | |
| H | 22.70 | mm | |
| K | 32 | mm | |
| RJ | 39 |
| m (Add mass for basis cylinder weight) | 4.10 | kg |
