REXROTH R105422500 shaft support rail

Name: R105422500 REXROTH
Brand: REXROTH
SKU: 311409-en-usd
Price: 234.47 USD
Availability: SoldOut

WU25-AS2-600

$234.47 /m ~~$468.94~~ /m -50%

Limited stock only available on quotation

Specifications

Shaft support rail material: Aluminum
Combined with Linear Sets, these shaft support rails can be used to create linear guides with very low height.
Extra rigidity. Carefully adapting the support rail to the Linear Bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.

Series (R1054)	R1054 shaft support rails
Hole spacing (2)	Hole spacing type 2

Size (25)	25 size
Shafts (00)	h6 heat-treated steel

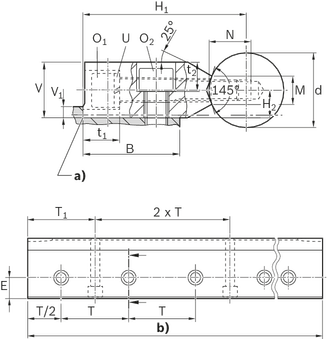

^a) Reference edge
^b) Length

B (Recommended design: No reference edge on opposite side (V₁) and align parallel over shafts. )	36
H₁ (Measured with gauging shaft, nominal dimension d and length about 50 mm.)	62	mm
H₂ (Measured with gauging shaft, nominal dimension d and length about 50 mm.)	10 mm ±0.012
O₁ (ISO 4762-8.8)	M8x50
T	60	mm
T₂	11	mm
V	20	mm

e	18
H₂	10	mm
m	10.80
O₂ (ISO 4762-8.8, recommendation applies for bolting in steel or cast iron threads.)	M8x20
T₁	15	mm
U (DIN 7980, discontinued. Spring washer commercially available.)	8
V₁ (Recommended design: No reference edge on opposite side (V₁) and align parallel over shafts. )	5.50	mm
