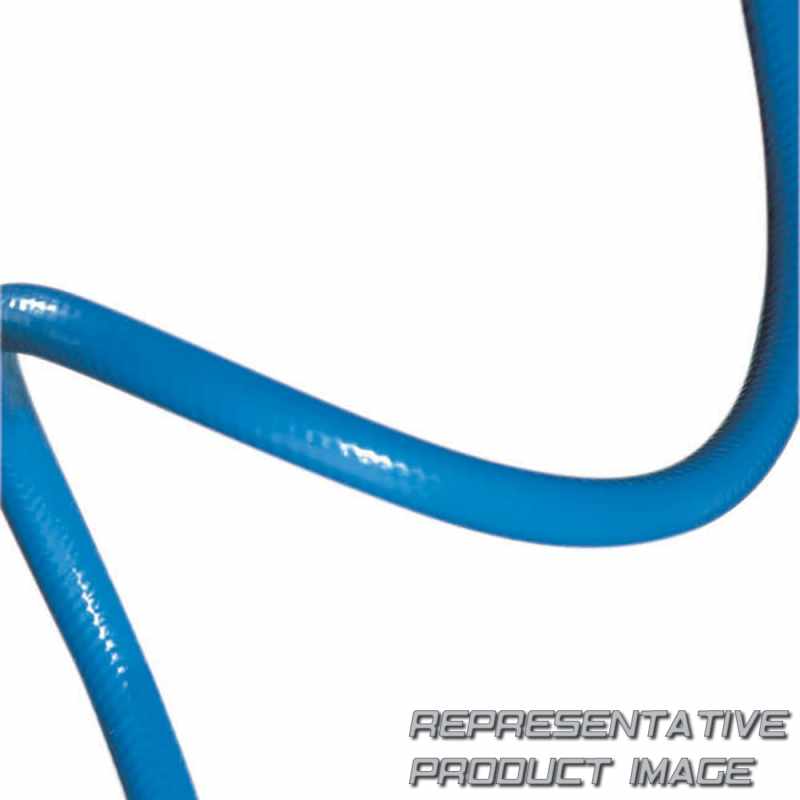

PARKER PVC12/050/03

Name: PVC12/050/03 PARKER
Brand: PARKER
SKU: 718994-en-usd
Price: 583.73 USD
Availability: InStock

$583.73 /m ~~$679.75~~ /m -14%

1,000 mm with 1 to 3 days delivery to United States

Specifications

max. pressure	1.5 mpa, 15 bar, 217 psi

Weight	199g

hose inside diameter		0.508 inch
cover color		blue
length per package		50 m
Brand		legris
industry		industrial manufacturing equipment
technology		fluid & gas handling, pneumatics, process control
product style		straight hose
minimum bend radius		89 mm, 3.56 inch
media		water, pneumatic media
maximum operating temperature		60 °c, 140 °f
specifications met		rohs, reach
hose inner tube material		pvc
weight (per unit of measure)		9.95 kg/package
region of origin		germany
number of tubes		1
bend radius		89 mm, 3.56 inch

hose outside diameter		0.76 inch
materials of construction		pvc with textile braid
maximum operating pressure		1.5 mpa, 15 bar, 217 psi
division		low pressure connectors europe division
Application		in-plant automotive, industrial assembly, machine tools, pneumatic, workshops
product type		coolant hose, pneumatic hose, water hose
vacuum pressure rating		755 mm-hg, 30 inch-hg, 1 bar
design factor		4:1
compatible fitting		brass compression fittings, stainless steel compression fittings
minimum operating temperature		-15 °c, 5 °f
cover material		pvc
hose reinforcement material		textile braid
package type		reel
Weight		0.199 kg/m, 0.083 lb/ft
for fluid type		pneumatic media, water
