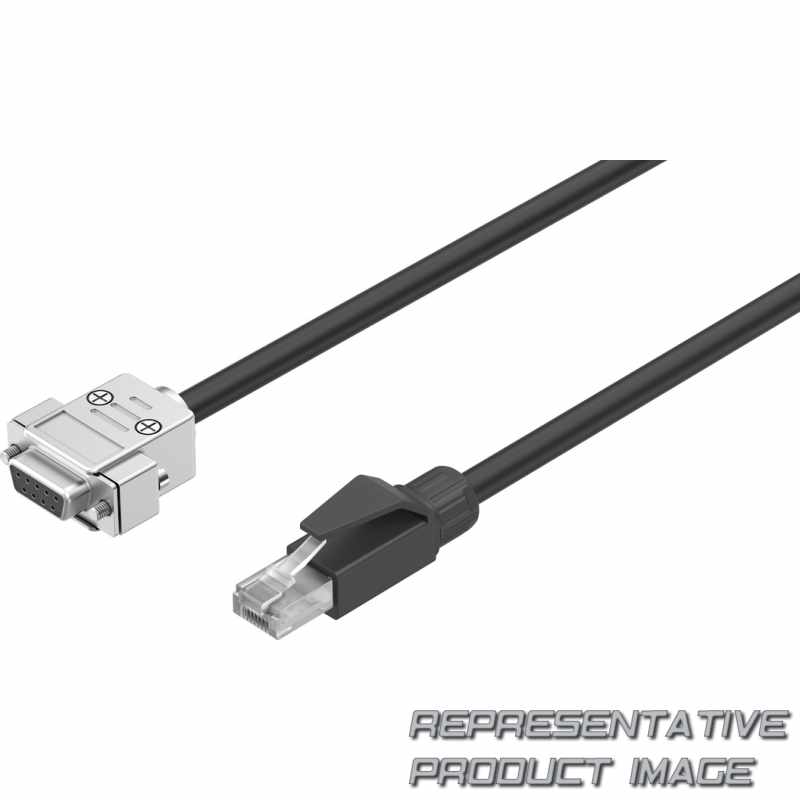

| Cable designation | Without inscription label holder | ||
| Electrical connection 1, function | Field device side | ||
| Electrical connection 1, connection type | Socket | ||
| Electrical connection 1, connector system | Sub-D | ||
| Electrical connection 1, used connections/cores | 8 | ||
| Electrical connection 2, function | Controller side | ||
| Electrical connection 2, connection type | Plugs | ||
| Electrical connection 2, connector system | RJ45 | ||
| Electrical connection 2, used connections/cores | 8 | ||
| Operational voltage range DC | 0 V ... 24 V | ||
| Current rating at 40°C | 0,9 A | ||
| Shielding | yes | ||
| Cable characteristic | Standard | ||
| Cable diameter | 6,8 mm | ||
| Nominal cross section conductor | 0,08 mm² | ||
| Degree of protection | IP20 | ||
| Ambient temperature | -20 °C ... 80 °C | ||
| Note on materials | RoHS-compliant | ||
| Material cable sheath | PVC | ||
| Material housing | PVC | ||
| Material insulating sheath | PVC |
| Product weight | 100 g | ||
| Electrical connection 1, design | Angular | ||
| Electrical connection 1, cable outlet | Straight | ||
| Electrical connection 1, number of connections/cores | 9 | ||
| Electrical connection 1, connection pattern | 995,638 | ||
| Electrical connection 2, design | Angular | ||
| Electrical connection 2, cable outlet | Straight | ||
| Electrical connection 2, number of connections/cores | 8 | ||
| Electrical connection 2, connection pattern | 995,653 | ||
| Nominal operating voltage DC | 24 V | ||
| Immunity to surge | 2 kV | ||
| Cable length | 0,5 m | ||
| Bending radius, fixed cable | 68 mm | ||
| Cable structure | 5 x (2 x 0.08 mm²) | ||
| Conductor nominal cross section | AWG28 | ||
| Note on degree of protection | In assembled state | ||
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive | ||
| Pollution degree | 2 | ||
| Cable sheath colour | Black | ||
| Housing colour | Black |
