| Cable designation | Without inscription label holder | ||
| Electrical connection 1, design | Round | ||
| Electrical connection 1, cable outlet | Straight | ||
| Electrical connection 1, number of connections/cores | 12 | ||

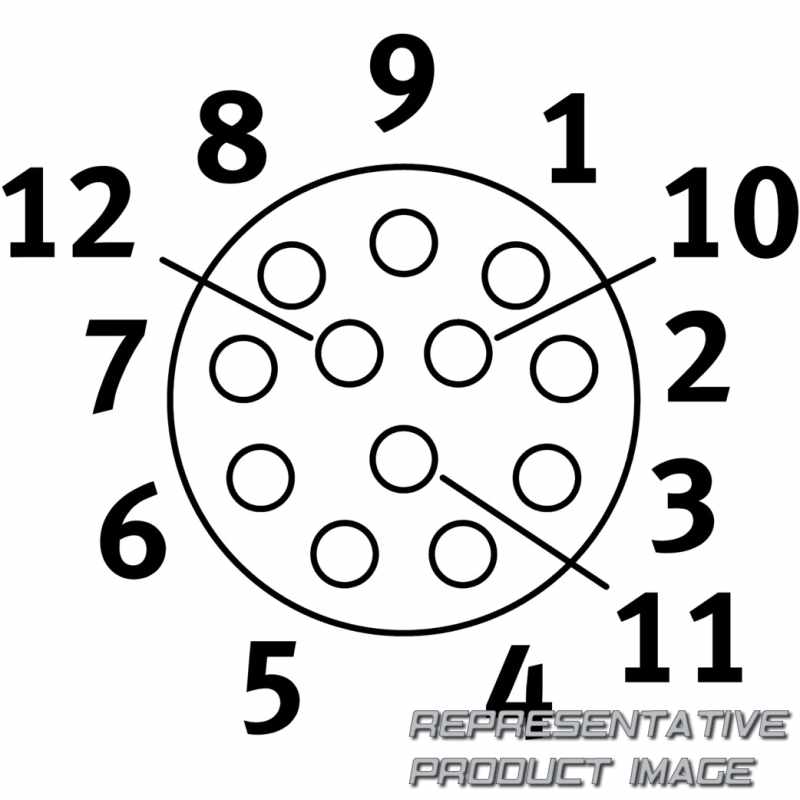

| Electrical connection 1, connection pattern | 995,670 | ||
| Electrical connection 2, design | Angular | ||
| Electrical connection 2, cable outlet | Straight | ||
| Electrical connection 2, number of connections/cores | 9 | ||
| Electrical connection 2, connection pattern | 995,639 | ||
| Nominal operating voltage DC | 24 V | ||
| Nominal operating voltage AC | 24 V | ||
| Cable characteristic | Suitable for energy chains | ||
| Cable diameter | 8,3 mm | ||
| Nominal cross section conductor | 0,5 mm² | ||
| Note on degree of protection | IP30 for Sub-D plug connector In assembled state | ||
| Ambient temperature with moving cable | -40 °C ... 75 °C | ||
| CE marking (see declaration of conformity) | To UK RoHS instructions | ||
| Note on materials | RoHS-compliant | ||
| Corrosion resistance class CRC | 0 - No corrosion stress |
| Electrical connection 1, function | Field device side | ||
| Electrical connection 1, connection type | Socket | ||
| Electrical connection 1, connector system | M23x1 | ||
| Electrical connection 1, used connections/cores | 6 | ||
| Electrical connection 2, function | Controller side | ||
| Electrical connection 2, connection type | Plugs | ||
| Electrical connection 2, connector system | Sub-D | ||
| Electrical connection 2, used connections/cores | 7 | ||
| Operational voltage range DC | 0 V ... 30 V | ||
| Operational voltage range AC | 0 V ... 30 V | ||
| Cable length | 10 m | ||
| Bending radius, moving cable | ≥ 98 mm | ||
| Cable structure | 3 x (2 x 0.14 mm²) + 2 x (0.5 mm²) Shielded | ||
| Degree of protection | IP65 | ||
| Ambient temperature | -50 °C ... 80 °C | ||
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Pollution degree | 3 | ||
| Material cable sheath | TPE-U(PUR) |
