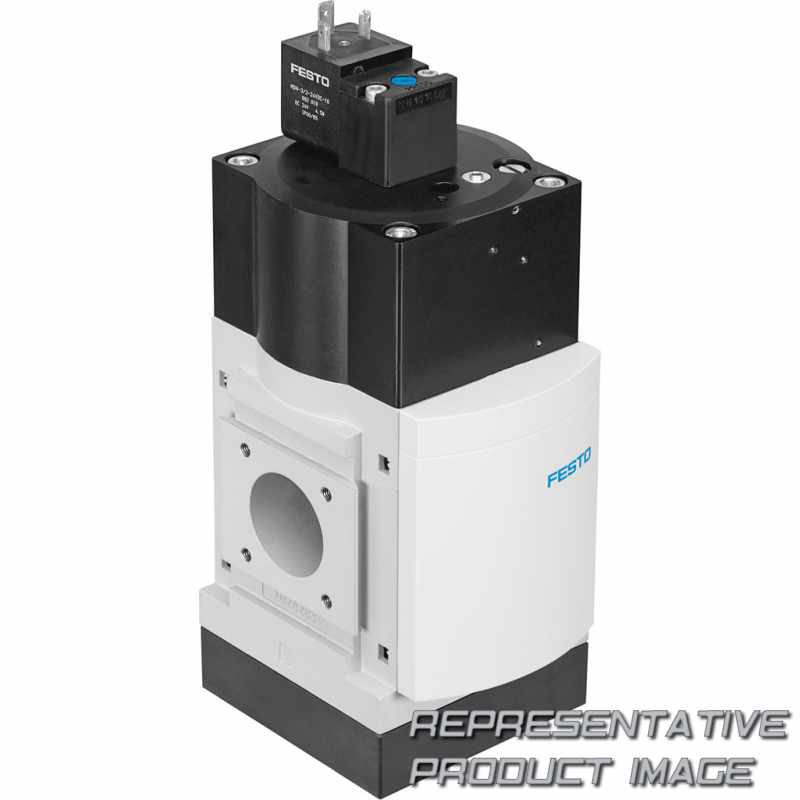

FESTO 570737 soft start/quick exhaust valve

Name: 570737 FESTO
Brand: FESTO
SKU: 671560-en-usd
Price: 868.36 USD
Availability: InStock

MS9-SV-G-C-V24-S-VS

$868.36 ~~$1,736.71~~ -50%

5 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (9)	Grid dimension 90 mm
Function (SV)	Soft-start/quick exhaust valve
Pneumatic connection (G)	Module without connecting thread, without sub-base
Performance Level (C)	Category 1, 1-channel to ISO 13849-1

Supply voltage (V24)	24 V DC (connection pattern to EN 175301)
Silencer (S)	Silencer
Pressure gauge alternatives (VS)	Cover plate
Alternative pressure gauge scale	MS pressure gauge

Series		MS
Grid dimension		90 mm
Performance Level (PL)		Exhausting/up to category 1, performance level c
Type of actuation		Electric
Exhaust-air function		Without flow control option
Type of reset		Mechanical spring
Symbol		995,240
Operating pressure		3,5 bar ... 16 bar
Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)		19.730 l/min ... 21.720 l/min
Characteristic coil data		24 V DC: 8.4 W
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Sound pressure level		93 dB(A)
Media temperature		0 °C ... 60 °C
Storage temperature		0 °C ... 60 °C
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Mounting position		optional
Pressure gauge connection		G1/8 G1/4
Electrical connection		Type A Plugs To EN 175301-803 Square design
Material seals		NBR
Material cover		Wrought aluminium alloy

Size		9
Safety function		Exhaust
Design		Piston gate valve
Sealing principle		Soft
Manual override		None
Type of piloting		Pilot actuated
Valve function		3/2-way, closed, monostable Soft-start function
Standard nominal flow rate		8.300 l/min ... 16.550 l/min
Duty cycle		100%
Permissible voltage fluctuations		+/- 10 %
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Note on materials		RoHS-compliant
Degree of protection		IP65
Ambient temperature		0 °C ... 60 °C
Shock resistance		Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Type of mounting		In-line installation With accessories Either:
Product weight		3.200 g
Pneumatic connection, port 3		G1 1 NPT
Material housing		Die-cast aluminium
Material piston slide		Brass
Material underneath cover		PA
