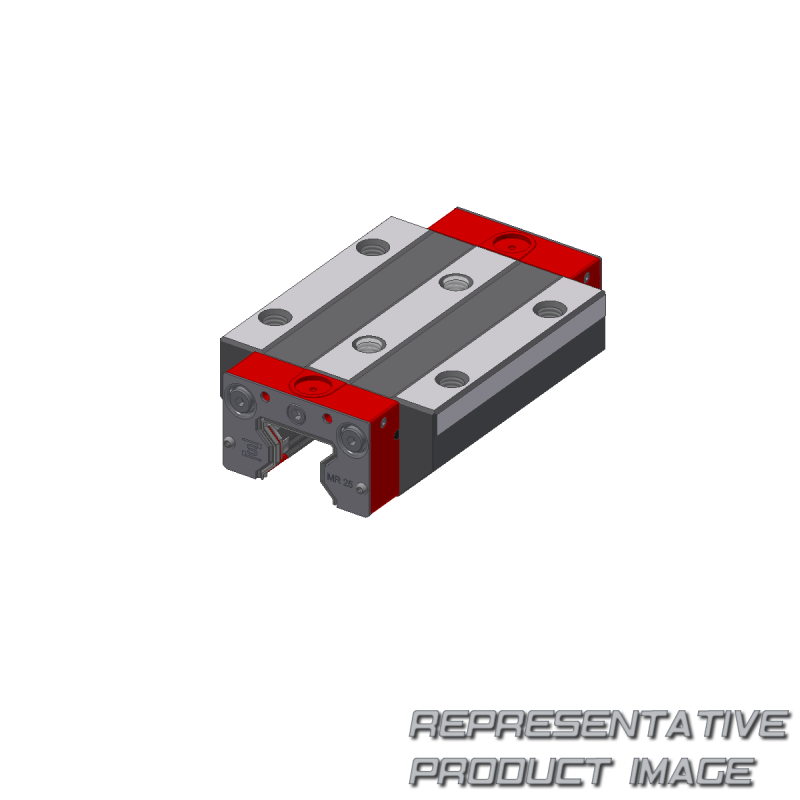

SCHNEEBERGER MRW45 -D-G1-V2

Name: MRW45 -D-G1-V2 SCHNEEBERGER
Brand: SCHNEEBERGER
SKU: 817858-en-usd
Price: 433.08 USD
Availability: InStock

580 103 273

$433.08 ~~$866.16~~ -50%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Accuracy class	g1
Weight	4Kg

weight rail (kg)		4
mq - dyn. cross moment capacity (nm)		3,527
m0q - static cross moment capacity (nm)		6,333
c0 - static load capacitiy (n)		229,500
n - lateral fixing hole spacing		60
l1 - exterior fixing hole spacing		80
j - carriage height		60
c4 - position of lateral lube hole		38.75
c1 - position of center front lube hole		18
b - carriage width in mm		86
coating		cn
Accuracy class		g1
carriage build form		d

ml - dyn. longitud. moment capacity (nm)		2,874
m0l - static longitud. moment capacity (nm		5,161
c100 - dynamic load capacity (n)		127,800
o - reference face height		10
l6 - steel body length		135
l - carriage length		180
c7 - position of lateral lube hole		34.50
c3 - position of lateral lube hole		18
b2 - distance between locating faces		20.50
a - system height in mm		70
Preload class		v2
buildsize		45
type (monorail carriage)		mr
