| weight rail (kg) | 2.20 | ||
| mq - dyn. cross moment capacity (nm) | 1,537 | ||
| m0q - static cross moment capacity (nm) | 2,762 | ||
| c0 - static load capacitiy (n) | 128,500 | ||
| n - lateral fixing hole spacing | 82 | ||
| l2 - interior fixing hole spacing | 52 | ||
| l - carriage length | 143 | ||
| c7 - position of lateral lube hole | 27.50 | ||
| c3 - position of lateral lube hole | 7 | ||
| b2 - distance between locating faces | 33 | ||
| a - system height in mm | 48 | ||
| Preload class | v2 | ||
| buildsize | 35 | ||

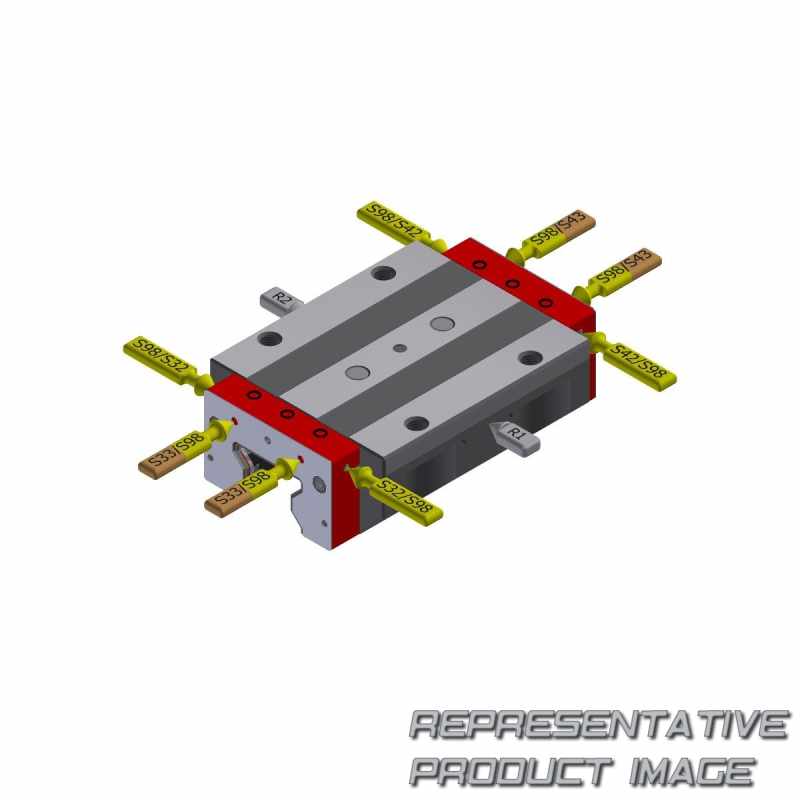

| type (monorail carriage) | mr |
| ml - dyn. longitud. moment capacity (nm) | 1,232 | ||
| m0l - static longitud. moment capacity (nm | 2,214 | ||
| c100 - dynamic load capacity (n) | 71,500 | ||
| o - reference face height | 8 | ||
| l6 - steel body length | 103 | ||
| l1 - exterior fixing hole spacing | 62 | ||
| j - carriage height | 40 | ||
| c4 - position of lateral lube hole | 30.50 | ||
| c1 - position of center front lube hole | 7 | ||
| b - carriage width in mm | 100 | ||
| coating | cn | ||
| Accuracy class | g2 | ||
| carriage build form | b |
