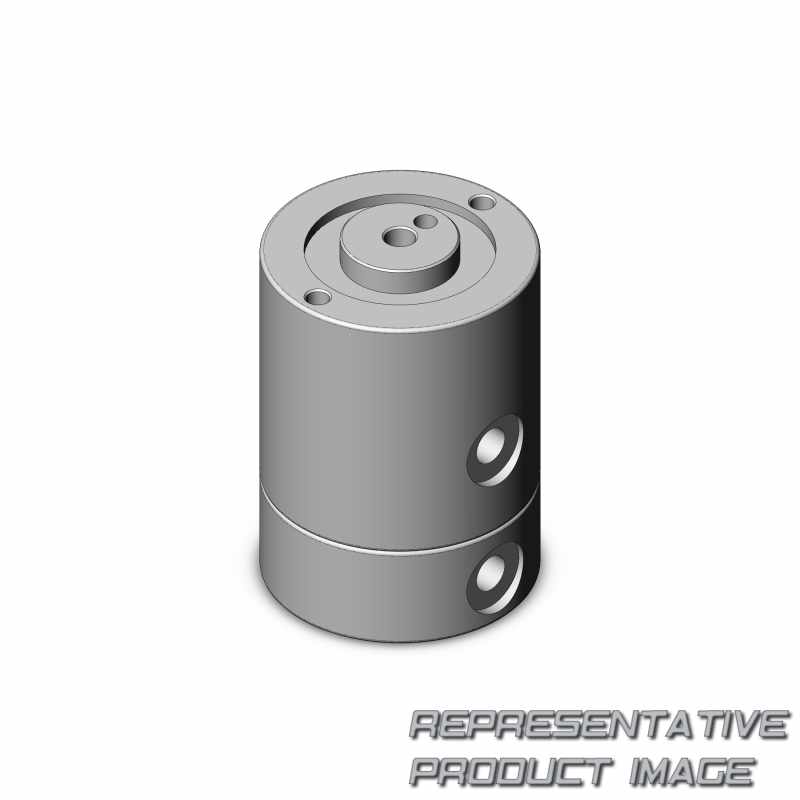

SMC MQR12-M5

Name: MQR12-M5 SMC
Brand: SMC
SKU: 742314-en-usd
Price: 2751.19 USD
Availability: InStock

$2,751.19 ~~$5,502.38~~ -50%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	1.0mpa
Seal	metal seal

Weight	1.26Kg

model		mqr12-m5
operating fluid		air / inert gas
guide structure		bearing supported at both ends
flow rate characteristics		0.17
min. operating pressure		-100kpa
ambient temperature and operating fluid temperature note 1)		-10 to 80c
allowable rotation speed		600 min-1 (r.p.m.)
Weight		2.96263 lb

Number of circuits		12
seal structure		metal seal
Port size		m5 x 0.8
Lubrication		not required
max. operating pressure		1.0mpa
allowable torque note 2)		0.20 n?m or less
allowable radial load (allowable coupling axis reaction) note 4)		50n
