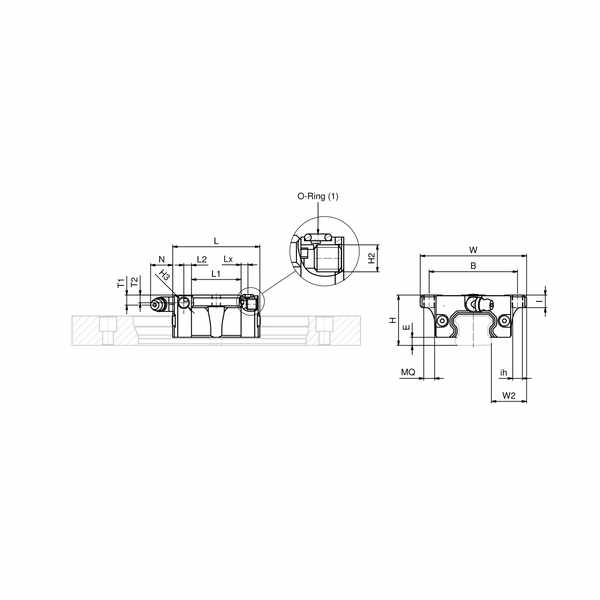

| Lubrication connection | 02 - Cup head grease nipple 0° | ||
| H | 24 mm | ||
| W2 | 18,5 mm | ||
| L - Length | 40,6 mm | ||
| ih | 4,4 mm | ||
| L1 | 22,2 mm | ||
| T1 | 5,5 mm | ||
| T2 | 4,5 mm | ||
| H3 | M 4 | ||
| C50 | 4,7 kN | ||
| C0 | 9,9 kN | ||
| My | 0,032 kN/m | ||
| Brand | SNR | ||
| Carriage version | X | ||
| Size | 15 | ||
| Sealing | SS - End seals on both sides, inner and side seals | ||
| Special options | N - Standard |
| Lubricant | A - SNR LUB HEAVY DUTY | ||
| W | 52 mm | ||
| E | 3,3 mm | ||
| MQ | M 5 | ||
| L | 7,5 mm | ||
| H2 | M 4 | ||
| N | 5,7 mm | ||
| L2 | 4,2 mm | ||
| Lx | 3 mm | ||
| C100 | 3,73 kN | ||
| Mx | 0,069 kN/m | ||
| Mz | 0,032 kN/m | ||
| Series | LGB | ||
| Carriage Height | S | ||
| Design type | FS | ||
| Material | Carbon steel |
