| Recommended tightening torque for set screw | 11,5 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 29,6 kN | ||

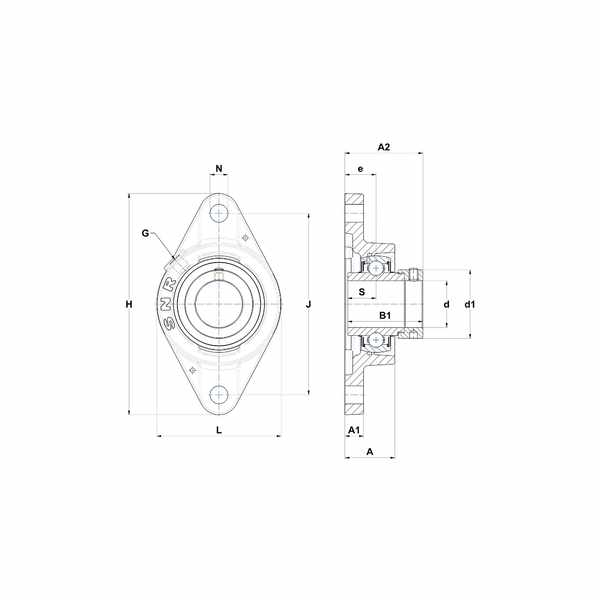

| N - Mounting hole dimension | 14 mm | ||
| J - Mounting holes distance | 143,5 mm | ||
| G - Grease fitting | R1/8" | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 60,3 mm | ||
| A2 - Total height from mounting surface | 58,9 mm | ||
| A - Housing height | 37,5 mm |
| Operating temperature max. | 200 °C | ||
| C0 - Static load rating | 18,2 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 21,4 mm | ||
| L - Housing width / diameter | 105 mm | ||
| H - Housing length, width or diameter | 172 mm | ||
| e - Distance mounting surface to bearing center | 24 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 56,3 mm | ||
| A1 - Housing foot height / flange height | 13 mm | ||
| Brand | SNR |
