SMC CG5
24 Products

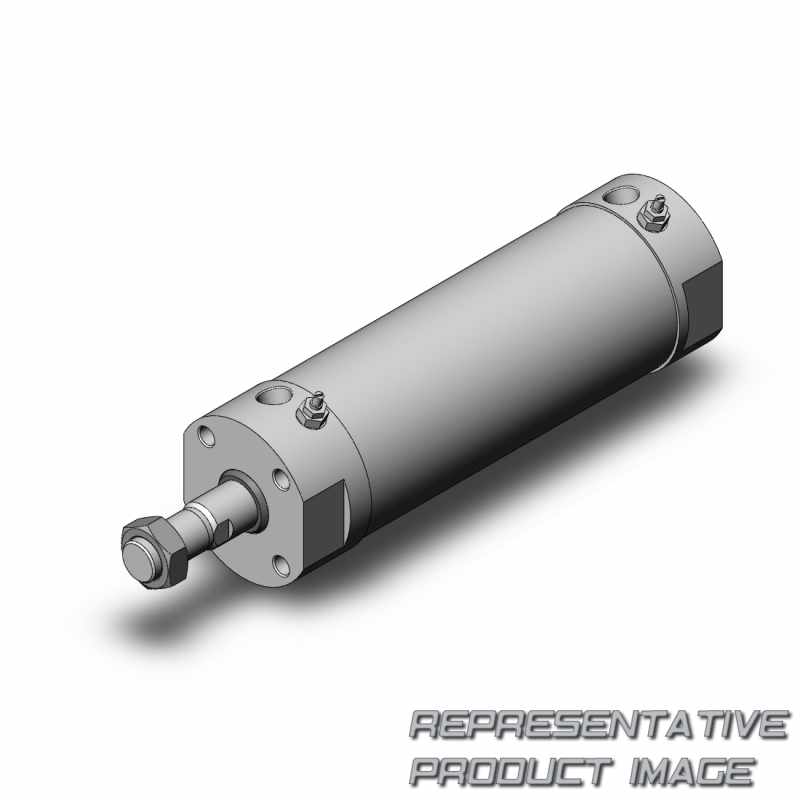

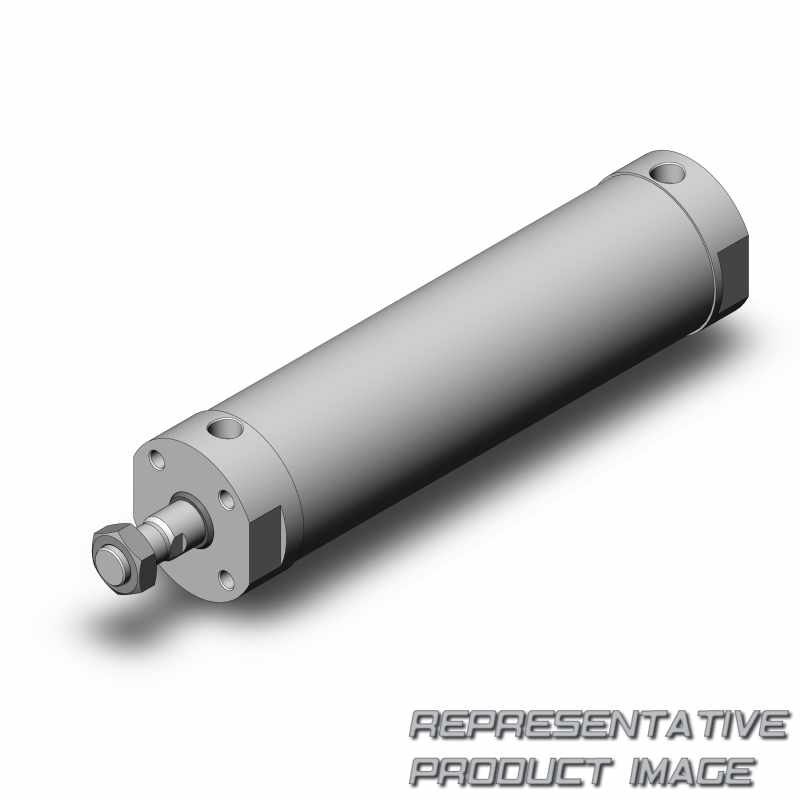

Discover all the available configurations for the SMC CG5 product series CG5-S Stainless Steel Cylinder. Find the right product by filtering with Mounting, Type, Bore Size, Port thread type, Seal Material and Weight.
CG5 Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| CG5 | CG5- - - -S- -[0-9]+ | CG5-S Stainless Steel Cylinder |
Typecode for Catalog Number CG5,
CG5- - - -S- -[0-9]+
| 001 | Series |
|---|---|
| CG5 | CG5-S Stainless Steel Cylinder |
| 002 | Mounting |
| B | Through-hole/Both ends tapped common (Standard) |
| L | Foot style |

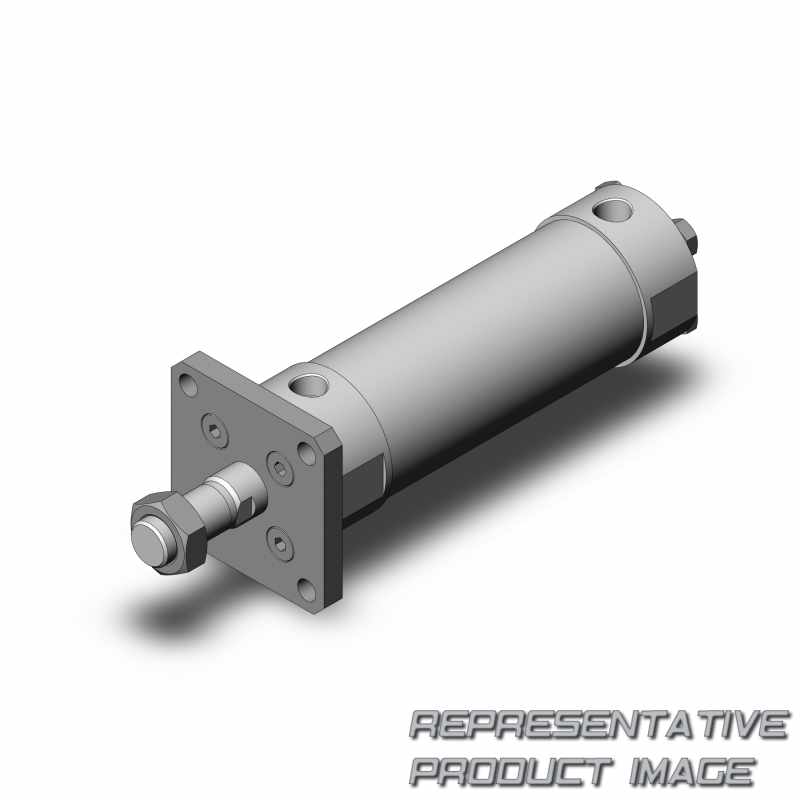

| F | Rod side flange style |
| G | Head side flange style |
| E | Integral clevis type |
| 003 | Type |
| N | Non-lube, rubber bumper |
| A | Non-lube, air cushion |
| 004 | Bore Size |
| 50 | 50 mm |
| 63 | 63 mm |
| 80 | 80 mm |
| 100 | 100 mm |
| 005 | Port thread type |
|---|---|
| TF | G |
| TN | NPT |
| Rc | |
| 006 | Stainless steel cylinder |
| S | S Stainless steel cylinder |
| 007 | Seal material |
| R | NBR |
| V | FKM |
| 008 | Cylinder stroke (mm) |
| [0-9]+ | millimeter stroke |
