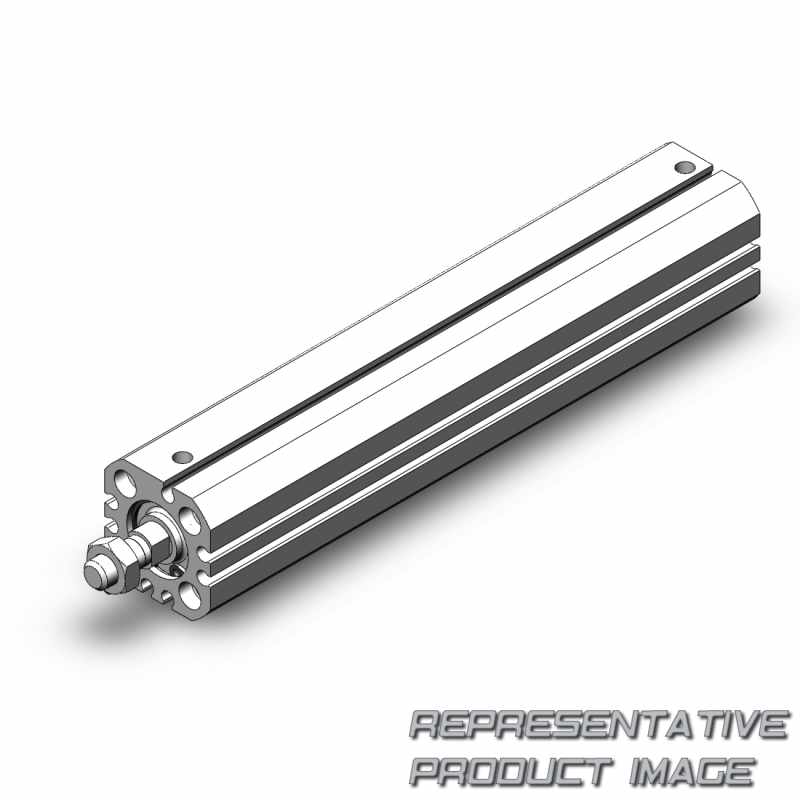

SMC CD55
275 Products
Discover all the available configurations for the SMC CD55 product series CD55 Compact Cylinder with auto switch. Find the right product by filtering with Mounting, Bore Size, Rod end thread and Weight.
CD55 Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| CD55 | CD55- - -[0-9]+ | CD55 Compact Cylinder with auto switch |
Typecode for Catalog Number CD55,
CD55- - -[0-9]+
| 001 | Series |
|---|---|
| CD55 | CD55 Compact Cylinder with auto switch |
| 002 | Mounting |
| B | Through-hole/Both ends tapped common (Standard) |
| L | Foot style |
| F | Rod side flange style |
| G | Head side flange style |
| C | Single clevis style |
| 003 | Bore Size |
| 20 | 20 mm |
| 25 | 25 mm |
| 32 | 32 mm |
| 40 | 40 mm |
| 50 | 50 mm |
| 63 | 63 mm |
| 80 | 80 mm |
| 100 | 100 mm |
| 004 | Cylinder stroke (mm) |
|---|---|
| [0-9]+ | millimeter stroke |
| 005 | Rod end thread |
| M | Rod end male thread |
| Rod end female thread | |
| 006 | Auto switch |
| M9B | Auto switch |
| Without auto switch | |
| 007 | Number of auto switches |
| n | n pcs. |
| S | 1 pc. |
| 2 pcs. |
