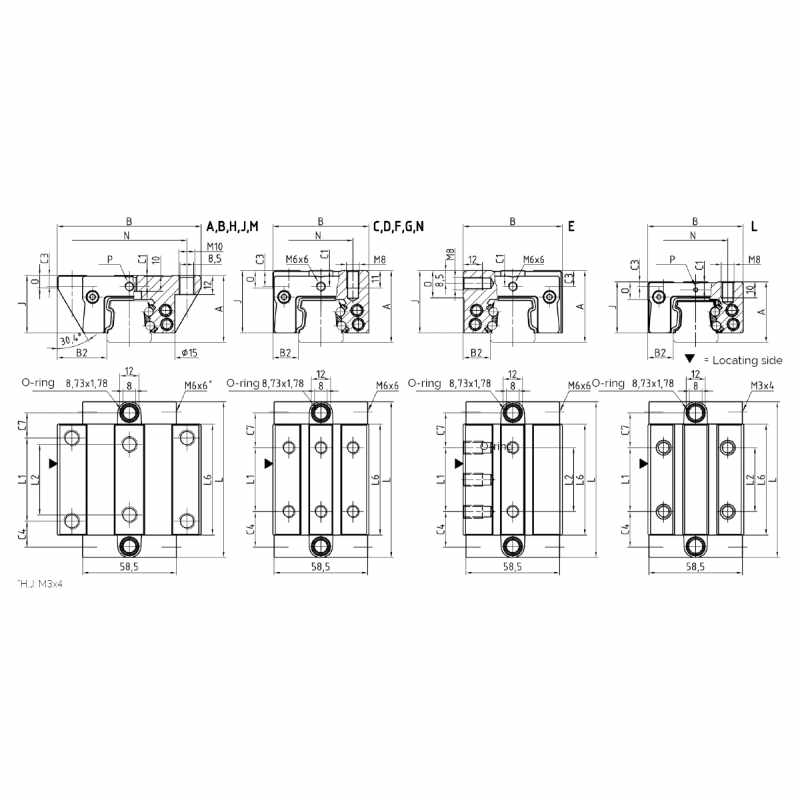

| type (monorail carriage) | bm | ||
| buildsize | 30 | ||
| Preload class | v2 | ||
| a - system height in mm | 42 | ||
| b2 - distance between locating faces | 16 | ||
| c3 - position of lateral lube hole | 7 | ||
| c7 - position of lateral lube hole | 22.70 | ||
| l - carriage length | 119.60 | ||
| l6 - steel body length | 91.40 | ||
| o - reference face height | 11 | ||
| c100 - dynamic load capacity (n) | 35,300 | ||
| m0l - static longitud. moment capacity (nm | 1,390 | ||
| ml - dyn. longitud. moment capacity (nm) | 589 |
| carriage build form | g | ||
| Accuracy class | g3 | ||
| coating | cn | ||
| b - carriage width in mm | 60 | ||
| c1 - position of center front lube hole | 7 | ||
| c4 - position of lateral lube hole | 23.20 | ||
| j - carriage height | 35.90 | ||
| l1 - exterior fixing hole spacing | 60 | ||
| n - lateral fixing hole spacing | 40 | ||
| c0 - static load capacitiy (n) | 83,300 | ||
| m0q - static cross moment capacity (nm) | 1,414 | ||
| mq - dyn. cross moment capacity (nm) | 599 | ||
| weight rail (kg) | 1.20 |
