| Db min - Min stop ring position diameter | 0 mm | ||

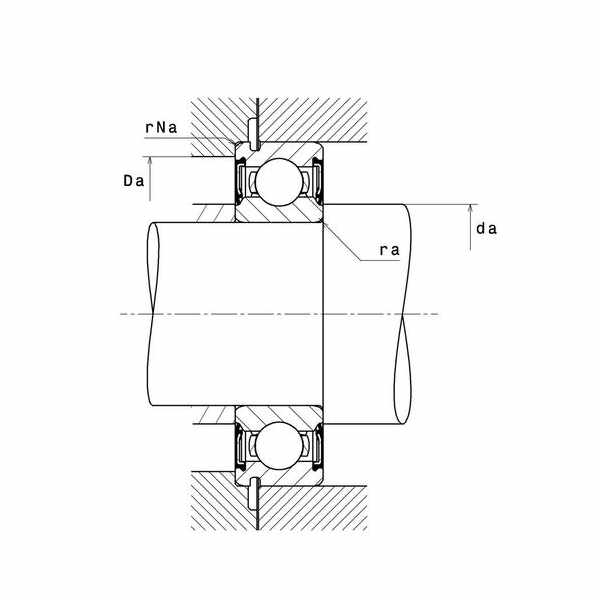

| ra max - Max shaft & housing fillet radius | 1 mm | ||
| da max - Max shoulder diameter IR | 41,7 mm | ||
| BSF - Characteristic rolling element frequency | 4,622 Hz | ||
| BPFI - Characteristic inner ring frequency | 5,432 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 7600 tr/min | ||
| Cu - Fatigue limit load | 0,51 kN | ||
| C - Dynamic load | 20,5 kN | ||
| r0 max - Max bottom groove radius | 0,6 mm | ||
| b min - Min groove width | 1,9 mm | ||
| rNs - Min fillet radius | 0,5 mm | ||
| a max - Max position groove | 3,28 mm | ||
| D1 - Inner diameter outer ring | 55,1 mm |
| rNa max - Max fillet radius on segment side | 0,5 mm | ||
| Da max - Max shoulder diameter OR | 57 mm | ||
| da min - Min shoulder diameter IR | 35 mm | ||
| FTF - Characteristic cage frequency | 0,396 Hz | ||
| BPFO - Characteristic outer ring frequency | 3,568 Hz | ||
| Tmin - Min operating temperature | -30 °C | ||
| f0 - Coefficient | 13.80 | ||
| C0 - Static load | 11,3 kN | ||
| Radial clearance class | CN | ||
| b max - Max groove width | 2,2 mm | ||
| D3 - Max bottom groove diameter | 59,61 mm | ||
| rs - Min fillet radius | 1 mm | ||
| a min - Min position Groove | 3,07 mm | ||
| Brand | SNR |
