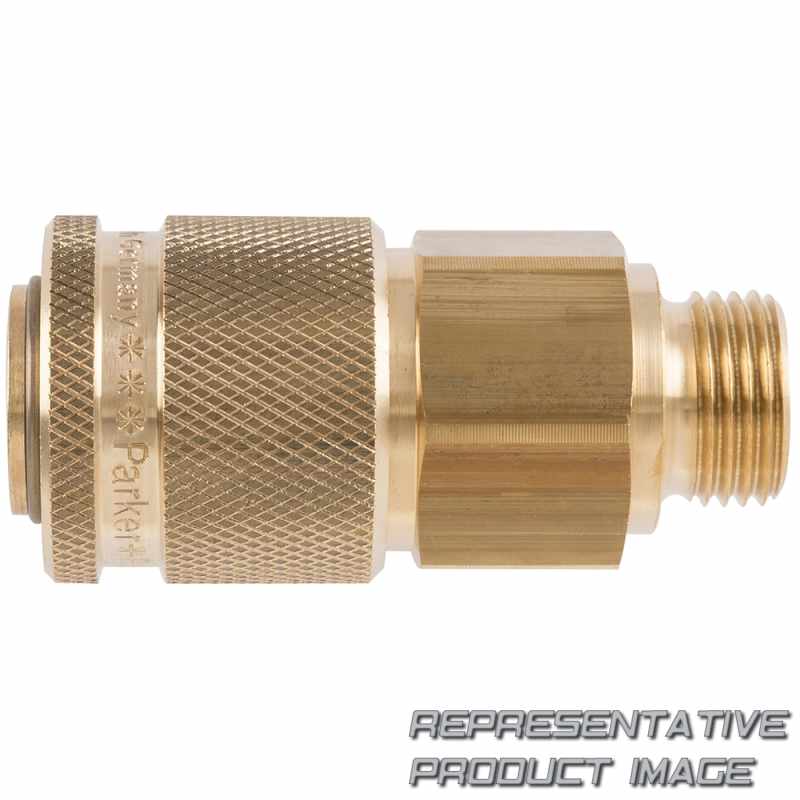

PARKER 37KAAW26MPX

$118.01 $236.02 -50%
1 pcs. with 1 to 3 days delivery to United States

Specifications

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

max. pressure 35 bar
max. flow 2350 l/min
Seal nbr
connection thread size (inch) 3/4
connection type male thread - parallel
Diameter 11 nom
Version single shut-off
hex size 30 mm
seal material nbr
maximum operating temperature 100 °c
flow rate 2350 l/min
Material brass
Type coupling
valve included yes
Length 77,5 mm
Outside diameter 35 mm
minimum operating temperature -20 °c
maximum operating pressure 35 bar
$118.01
Stock 1 pcs.
Part number 37KAAW26MPX
Manufacturer PARKER
Quantity Unit Price
1+ $118.01
