| protection type ip (max. with suitable connector) | ip65/67 | ||
| communication interface protocol | service-büs | ||
| Mounting type | element drive | ||
| Type | 8,692 | ||
| valve diameter | 0,6 mm | ||
| input 2 type digital transistor connection pnp | yes | ||
| input 1 type analog voltage | 0-5/10 v | ||
| approval type | ul | ||
| temperature environment min | -10 °c | ||
| voltage max / rated voltage | 24 v | ||
| port connection 1 thread type | g | ||
| port connection 1 type | inner thread | ||
| for actuator size 90mm | yes | ||
| displacement transducer signal | digital 14-bit | ||
| Customscode | 90268020 |
| control interface | keyboard and display internal | ||
| electrical connection sort | screw terminal with cable feed-through | ||

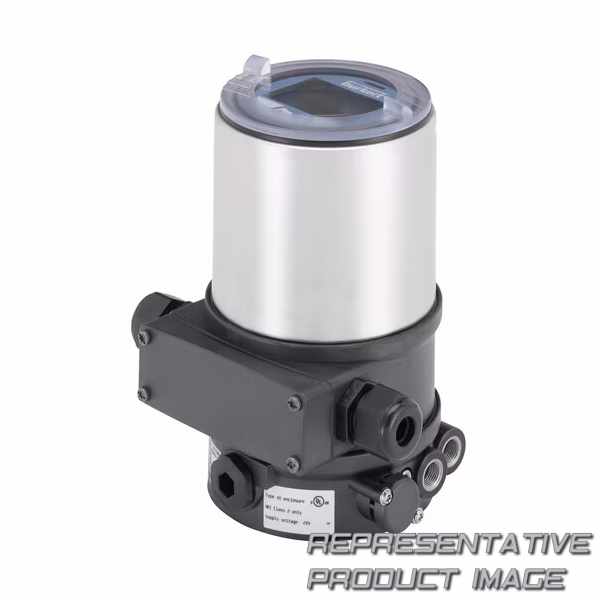

| product sub-group | positioner / process controller | ||
| function | positioner | ||
| qnn value (gas) | 7 l/min | ||
| input 1 type analog current | 0/4-20 ma | ||
| certification type | ul listed culus | ||
| temperature environment max | 55 °c | ||
| dc voltage | yes | ||
| voltage min / rated voltage | 24 v | ||
| port connection 1 thread marking | 1/8 | ||
| pneumatic function 1 single acting | yes | ||
| for actuator size 70mm | yes | ||
| displacement transducer type | internal linear |
