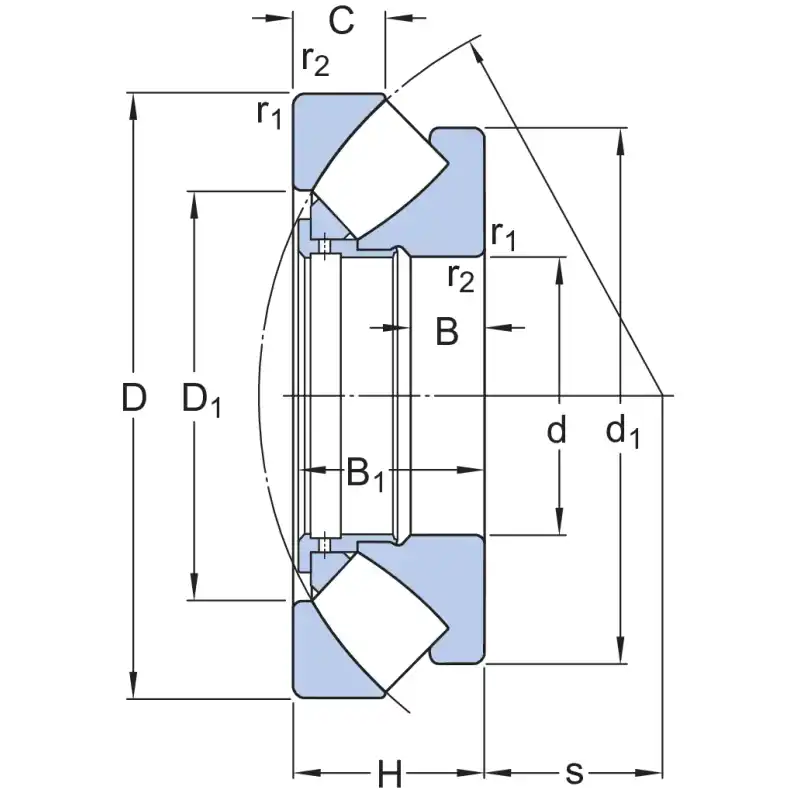

| Chamfer dimension shaft washer | r3,4 | min.2.1 | |
| Height housing washer | C | 30.50 | mm |
| Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a machined cage) | B | 19 | mm |
| Outside diameter of shaft washer end side face | d1 | ≈370 | |
| Outside diameter | d2 | 380 | mm |
| Distance from shaft washer end side face to pressure point | s | 150 | mm |
| Height shaft washer + cage | B1 | 57 | mm |
| Shoulder diameter outer ring | D1 | ≈323 | |
| Nominal height | H | 60 | mm |
| Bore diameter | d | 280 | mm |
