| ra max - Max shaft & housing fillet radius | 2 mm | ||
| da min - Min shoulder diameter IR | 112 mm | ||
| BSF - Characteristic rolling element frequency | 6,233 Hz | ||
| BPFI - Characteristic inner ring frequency | 10,392 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Mechanical Limit Speed | 4600 tr/min | ||
| Y2 - Upper axial load coefficient | 4.23 | ||
| Y0 - Static axial load coefficient | 2.78 | ||
| Cu - Fatigue limit load | 54,3 kN | ||
| C - Dynamic load | 472 kN | ||

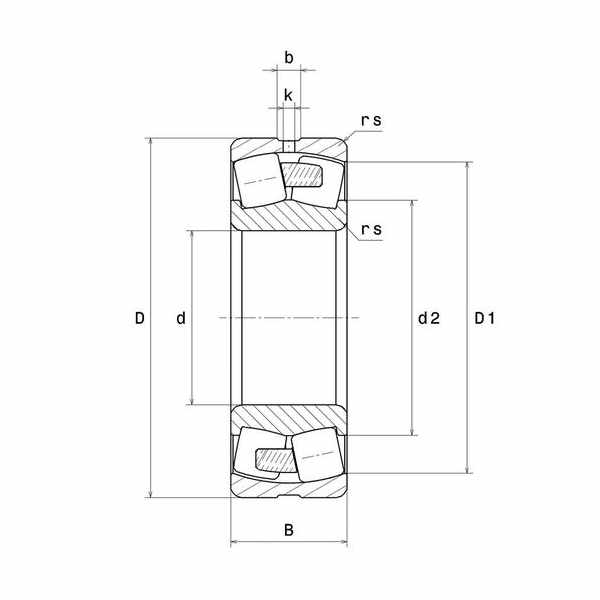

| k - Hole diameter | 5 mm | ||
| Number of lubrication holes | 3 | ||
| D1 - Inner diameter outer ring | 160,8 mm |
| Da max - Max shoulder diameter OR | 168 mm | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| FTF - Characteristic cage frequency | 0,423 Hz | ||
| BPFO - Characteristic outer ring frequency | 7,608 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 3600 tr/min | ||
| Y1 - Lower axial load coefficient | 2.84 | ||
| e - Coefficient | 0.24 | ||
| C0 - Static load | 495 kN | ||
| Radial clearance class | C4 Special | ||
| b - Groove width | 11 mm | ||
| rs - Min fillet radius | 2,1 mm | ||
| Brand | SNR |
