| thermal insulation class of the actuator | h | ||
| coil insulation material (encasement) | stainless steel | ||
| protection type ip (max. with suitable connector) | ip10 | ||
| electrical connection type | male | ||

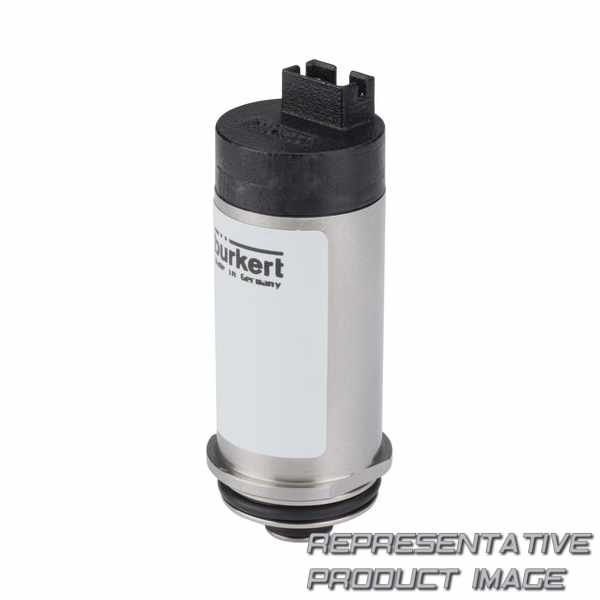

| electrical connection sort | plug 2-pin jst phr-3 | ||
| core guide | form spring | ||
| pwm frequency min. | 2.000 hz | ||
| switch function | constant | ||
| flow | below seat | ||
| actuator type | plunger valve | ||
| main valve orifice 1 (p) (mm) | 4,1 mm | ||
| kv value (water) | 0,2 m3/h | ||
| sealing toward outside material | fkm (fluor rubber) | ||
| seat seal material category | elastomer | ||
| temperature environment min | 5 °c | ||
| temperature medium min | 5 °c | ||
| nominal pressure max | 7 bar | ||
| main valve wetted material | stainless steel | ||
| voltage tolerance negative | 10 % | ||
| voltage max / rated voltage | 24 v | ||
| port connection 2 type | bürkert cartridge-connection | ||
| suitable for gaseous media | yes | ||
| Valve function | a - normally closed - inlet port 1 (p/nc) | ||
| fluidic port connection number | 2 |
| coil resistance | 144,5 ohm | ||
| coil type | permanently integrated | ||
| electrical connection position | top | ||
| electrical connection number of contacts | 2 | ||
| core guide 2 | form spring | ||
| pwm frequency max. | 9.999 hz | ||
| nominal operation/duty cycle | 100 % | ||
| main valve operating principle | globe valve | ||
| operation | direct-acting | ||
| Type | 2,852 | ||
| qnn value (gas) | 215 l/min | ||
| rated power consumption | 3,4 w | ||
| seat seal material | fkm (fluor rubber) | ||
| temperature environment max | 50 °c | ||
| temperature medium max | 50 °c | ||
| differential pressure max | 7 bar | ||
| nominal pressure min | 0 bar | ||
| dc voltage | yes | ||
| voltage tolerance positive | 10 % | ||
| voltage min / rated voltage | 24 v | ||
| port connection 1 type | bürkert cartridge-connection | ||
| Mounting position | any | ||
| valve function number of switching positions | 2 | ||
| Customscode | 84818079 |
