| rated power ac | 17 v·a | ||
| thermal insulation class of the actuator | b | ||
| coil size | 32 mm | ||
| coil type | placed on top | ||
| electrical connection position | in direction of flow left | ||
| electrical connection number of contacts | 2 + grounding conductor | ||
| switch time close max. | 20 ms | ||
| switch time open max. | 15 ms | ||
| switch function | on/off | ||
| main valve operating principle | globe valve | ||
| actuator type | plunger valve | ||
| main valve orifice 1 (inch) | 1/16 inch | ||
| qnn value (gas) | 75 l/min | ||
| rated power consumption | 8 w | ||
| seat seal material | fkm (fluor rubber) | ||
| temperature environment max | 55 °c | ||
| temperature medium max | 100 °c | ||
| nominal pressure max (liquid) | 16 bar | ||
| nominal pressure min | 0 bar | ||
| ac voltage | yes | ||
| voltage tolerance positive | 10 % | ||
| voltage max / rated voltage | 230 v | ||
| port connection 3 thread marking | 1/8 | ||
| port connection 3 type | outer thread | ||
| port connection 2 type | flanged | ||
| port connection 1 type | flanged | ||
| fluidic port connection number | 3 |
| inrush power consumption ac | 24 v·a | ||
| coil wiring overvoltage protection | without | ||
| coil insulation material (encasement) | pa (polyamide) | ||
| protection type ip (max. with suitable connector) | ip65 | ||
| cable plug in delivery | not included | ||
| nominal operation/duty cycle | 100 % | ||
| switch time close min | 15 ms | ||
| switch time open min | 10 ms | ||
| valve construction | valve complete | ||
| operation | direct-acting | ||

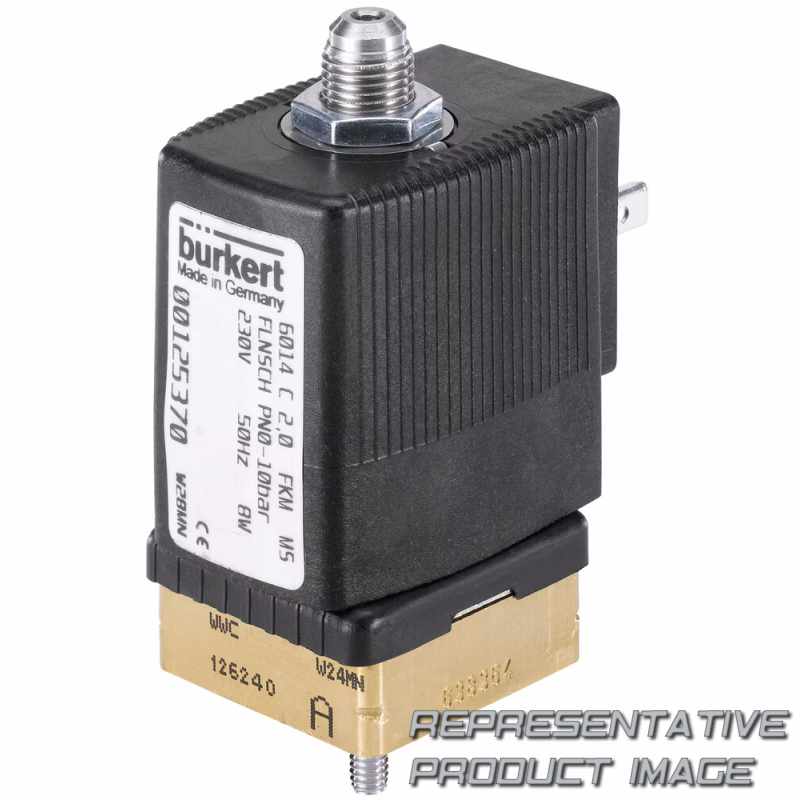

| Type | 6,014 | ||
| main valve orifice 1 (p) (mm) | 1,5 mm | ||
| kv value (water) | 0,07 m3/h | ||
| sealing toward outside material | fkm (fluor rubber) | ||
| seat seal material category | elastomer | ||
| temperature environment min | -10 °c | ||
| temperature medium min | -10 °c | ||
| nominal pressure max (gas) | 16 bar | ||
| main valve wetted material | brass | ||
| voltage tolerance negative | 10 % | ||
| voltage frequency | 50 hz | ||
| voltage min / rated voltage | 230 v | ||
| port connection 3 thread type | g | ||
| port connection 2 flange | bürkert flange 32 x 32 version a1 | ||
| port connection 1 flange | bürkert flange 32 x 32 version a1 | ||
| valve function number of switching positions | 2 | ||
| Customscode | 84818079 |
