| Rear cover | Standard | ||
| port connection | Rectangular flange to fitting ISO 8434-4 | ||
| Series | Bearing diameter 20mm | ||
| function | Pump | ||
| Application | general | ||
| Housing Material | Aluminum | ||
| Direction of rotation | Clockwise rotation | ||
| Maximum rotational speed | 3000 rpm | ||
| Nominal size | 12 cm³/rev |
| Sealing Material | NBR | ||
| Version | Corrosion resistant, pinned | ||
| model | Model J (4 ... 28 cm³/rev) | ||

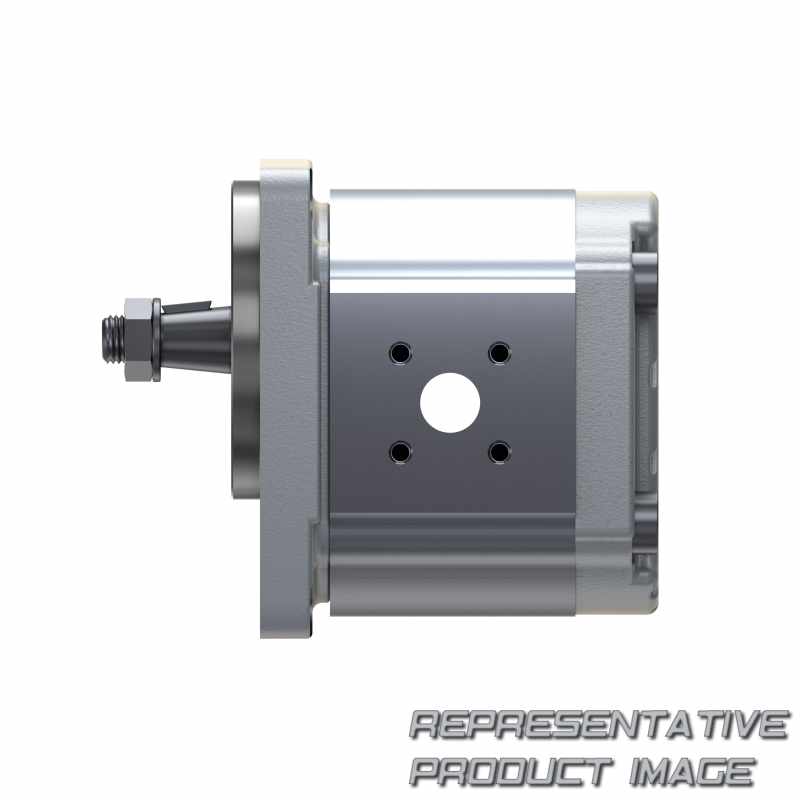

| product | External Gear Unit | ||
| Noise level | Very low noise at low frequency | ||
| Front cover | Rectangular flange Dia. 80 mm | ||
| Drive shaft | Conical 1:5 | ||
| Max. intermittent pressure | 280 bar |
