| Non-standard version | Deviations from catalogue standards, see drawing | ||
| Sealing Material | NBR | ||
| Version | Phosphated, pinned | ||
| model | Model F (4 ... 28 cm³/rev) | ||

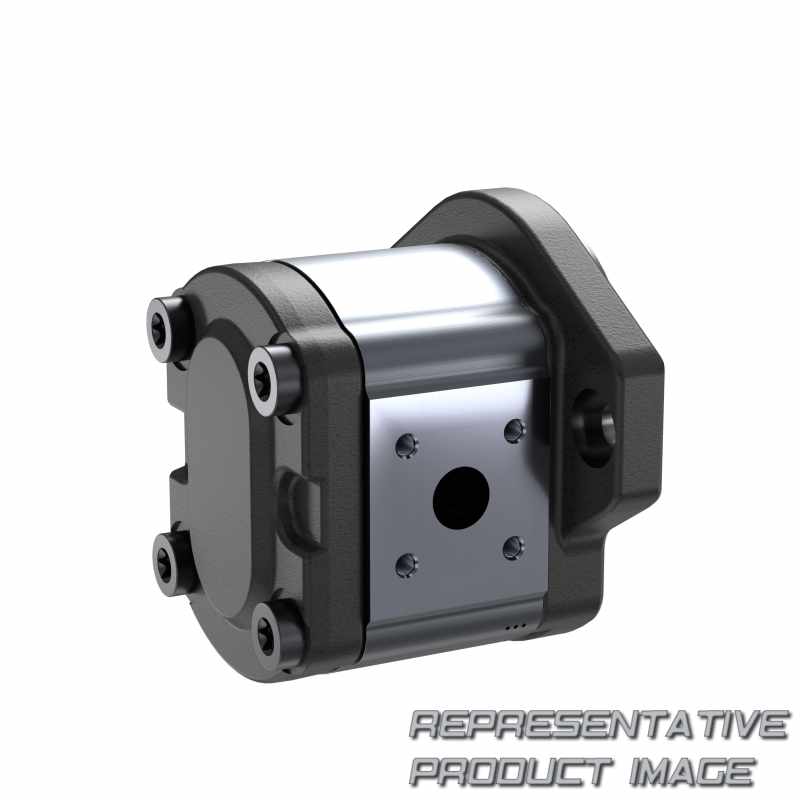

| product | External gear unit | ||
| Housing Material | Aluminum | ||
| Direction of rotation | clockwise rotation | ||
| Maximum rotational speed | 3000 rpm | ||
| Nominal size | 16 cm³/rev |
| Rear cover | Standard | ||
| port connection | Square flange DIN 3901/3902 | ||
| Series | Bearing diameter Ø 18mm | ||
| function | Pump | ||
| Noise level | Standard noise level | ||
| Front cover | SAE J744 82-2 (A) | ||
| Drive shaft | Cylindrical SAE J744 16-1 (short version) | ||
| Max. intermittent pressure | 200 bar |
