| Non-standard version | Deviations from catalogue standards, see drawing | ||
| Sealing Material | NBR | ||
| Version | phosphatized, pinned | ||
| model | Model F (4 ... 28 cm³/rev) | ||

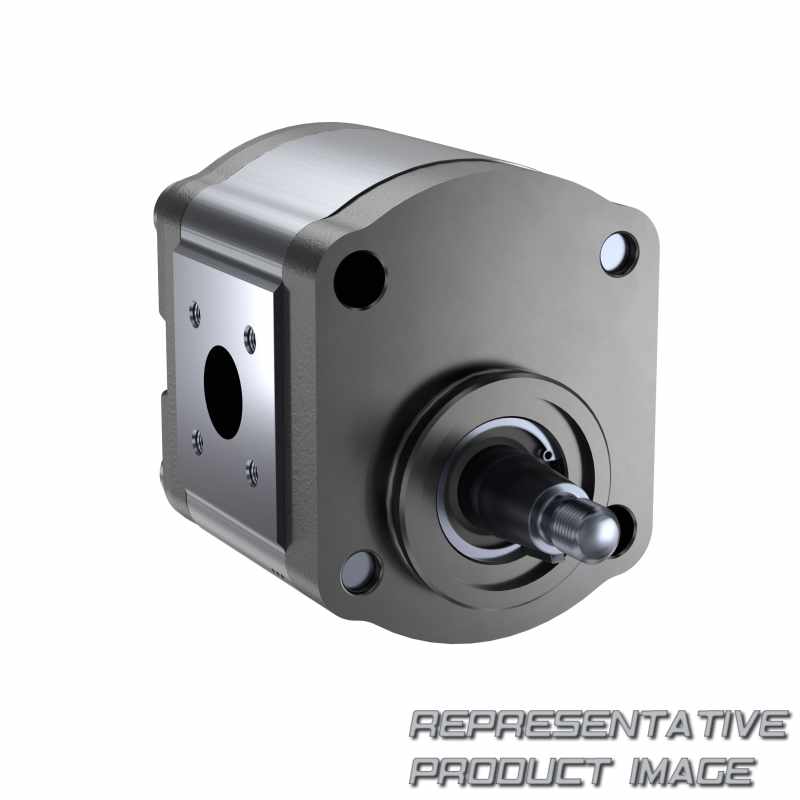

| product | External Gear Unit | ||
| Application | Deutz motor | ||
| Housing Material | Aluminum | ||
| Direction of rotation | Counter clockwise rotation | ||
| Maximum rotational speed | 3500 rpm | ||
| Nominal size | 11 cm³/rev |

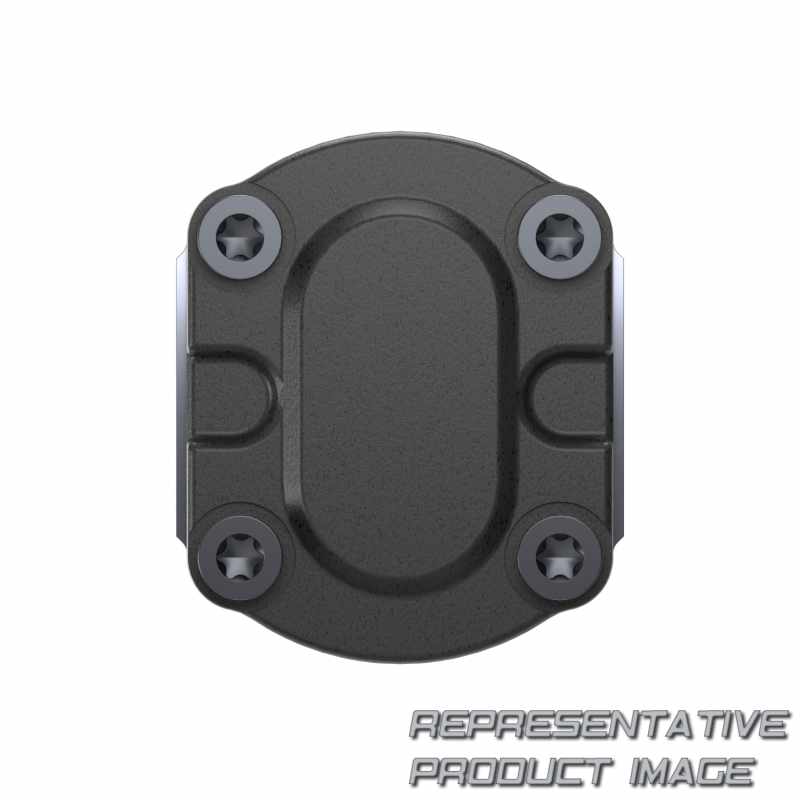

| Rear cover | Standard (cast iron) | ||
| port connection | Square flange to fitting ISO 8434-1 | ||
| Series | Bearing diameter 18mm | ||
| function | Pump | ||
| Customer part number | 5050661869 | ||
| Noise level | Standard noise level | ||
| Front cover | 2-bolt mounting Dia. 50 mm (K H D) | ||
| Drive shaft | Conical 1:5 | ||
| Max. intermittent pressure | 280 bar |
