| Brand | snr | ||
| BRF - Rotational frequency – rolling element (60 rpm) | 2,461 Hz | ||
| BPFI - Over rolling frequency on inner (60 rpm) | 5,379 Hz | ||
| Recommended tightening torque for set screw | 8 N-m | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 20,8 kN | ||

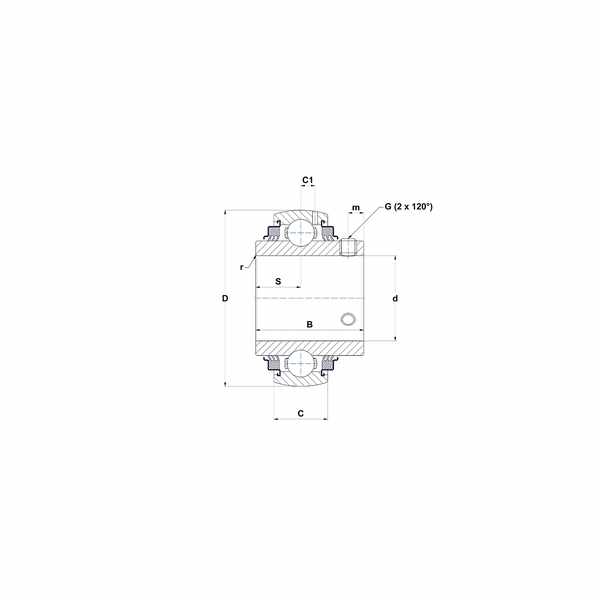

| SW - Wrench size | 3,969 mm | ||
| S - Distance front side/bearing centre | 19 mm | ||
| m - Distance to set screw | 8 mm | ||
| D - Outer diameter of OR | 85 mm | ||
| C1 - Distance center of OR to center of lubrication zone | 6,8 mm | ||
| B - Width of Inner Ring | 49,2 mm |
| FTF - Rotational frequency - cage (60 rpm) | 0,402 Hz | ||
| BSF - Over rolling frequency on rolling element (60 rpm) | 4,923 Hz | ||
| BPFO - Over rolling frequency on outer ring (60 rpm) | 3,621 Hz | ||
| mass | 0,78 kg | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 31,85 kN | ||
| f0 - Factor | 14 | ||
| r - Radius Inner Ring | 1,10 | ||
| G - Set screw size | 5/16-24UNF | ||
| d - Shaft diameter | 41,275 mm | ||
| C - Width of Outer Ring | 22 mm |
