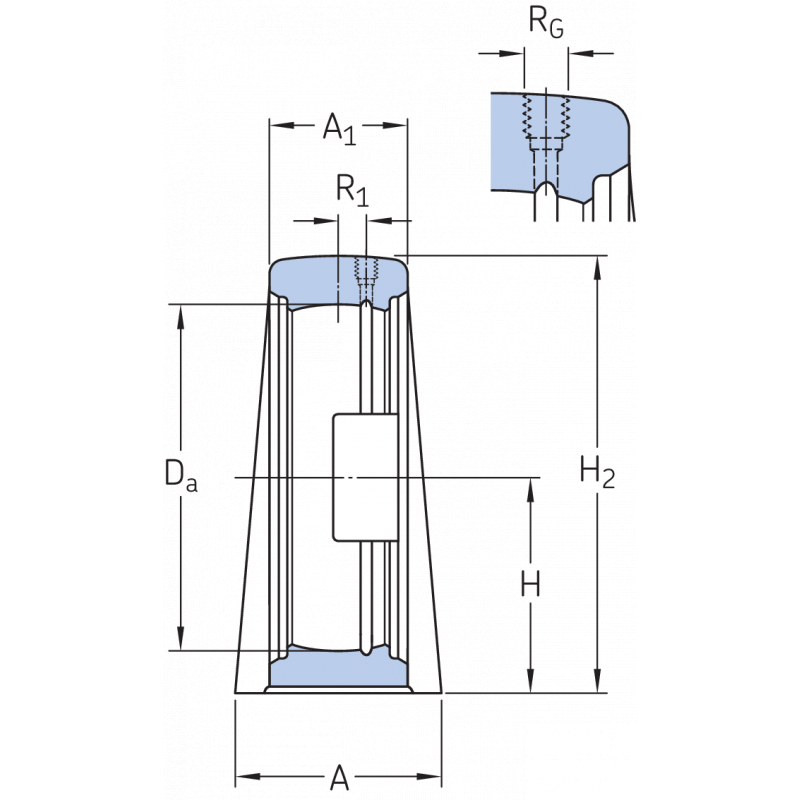

| Overall length | L | 98 | mm |
| Overall height | H | 82 | mm |
| Top width | A1 | 25 | mm |
| Diameter of spherical seat | Da | 62 | mm |
| Distance between attachment bolts | J | 76,20 | mm |
| Height of spherical seat centre | H | 42,90 | mm |
| Base width | b | 40 | mm |
| Fabricante | Referencia |
|---|---|
| INA | GG.SHE06-E-N (INA) |
