| dust protection seal | SS - With End Seal And Side Seal And Inner Seal | ||
| preload | light preload | ||

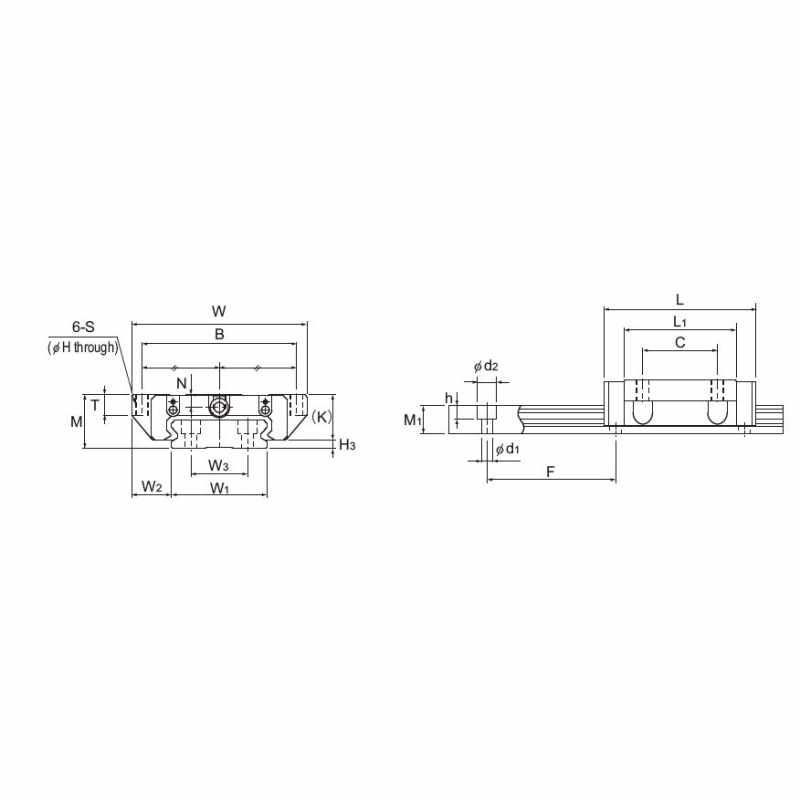

| outer dimensions - widthw - mm | 120 | ||
| block dimensions - b - mm | 107 | ||
| block dimensions - s | m8 | ||
| rail dimensions - pitch f - mm | 80 | ||
| basic load rating - radial - dynamic rating c - kn | 35,50 |
| Tamaño | 35 | ||
| outer dimensions - heightm - mm | 35 | ||
| outer dimensions - lengthl - mm | 107 | ||
| block dimensions - c - mm | 60 | ||
| block dimensions - h - mm | 6,80 | ||
| rail dimensions - d1xd2xh - mm | 7x11x9 | ||
| basic load rating - radial - static rating c0 - kn | 49,20 |
