| material reservoir | die cast zinc | ||
| seal material | acrylonitrile butadiene rubber | ||
| Material de la carcasa | die cast zinc | ||
| mounting orientation | vertical | ||
| Peso | 1.29 kg | ||
| filter element | exchangeable | ||
| max. achievable compressed air class acc. to iso 8573-1:2010 | 1 : - : 2 | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 16 bar | ||
| Purga de condensado | fully automatic, open without pressure | ||
| filter porosity | 0.01 µm | ||
| reservoir | reservoir, metal, with inspection glass |
| material threaded bushing | die cast zinc | ||
| material front plate | acrylonitrile butadiene styrene | ||
| Tipo | can be assembled into blocks | ||
| inspection glass | with window | ||
| recommended pre-filtering | 0.3 µm | ||
| filter reservoir volume | 25 cm³ | ||
| Medio | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 1.5 bar | ||
| nominal flow qn | 720 l/min | ||
| port | g 1/2 | ||

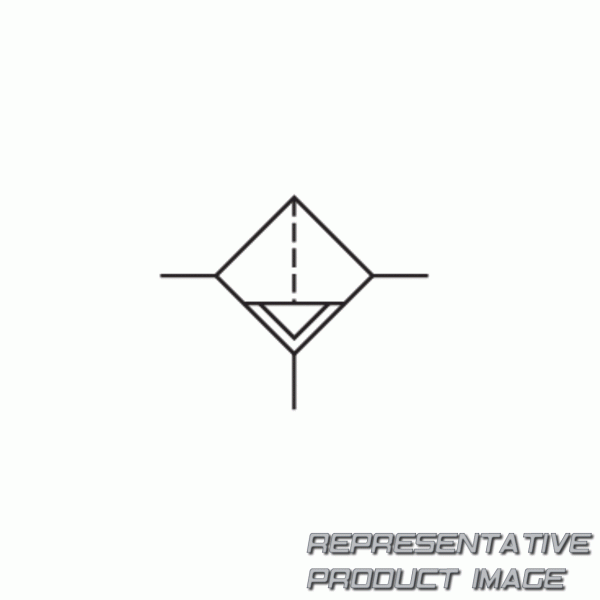

| parts | microfilter |
