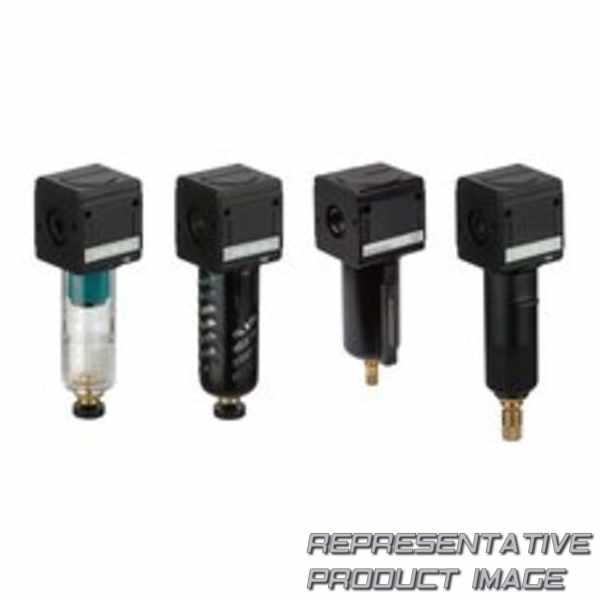

| parts | active carbon filter | ||
| port | g 1/4 | ||
| Purga de condensado | without | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 50 °c | ||
| max. achievable compressed air class acc. to iso 8573-1:2010 | - : - : 1 | ||
| filter element | exchangeable | ||
| Peso | 0.454 kg | ||
| mounting orientation | vertical | ||
| Material de la carcasa | polyamide | ||
| seal material | acrylonitrile butadiene rubber | ||
| material reservoir | die cast zinc |
| reservoir | reservoir, metal, with inspection glass | ||
| nominal flow qn | 650 l/min | ||
| working pressure min. | 0 bar | ||
| min. ambient temperature | -10 °c | ||
| Medio | compressed air, neutral gases | ||
| filter reservoir volume | 12 cm³ | ||
| recommended pre-filtering | 0.01 µm | ||
| inspection glass | with window | ||
| Tipo | can be assembled into blocks | ||
| material front plate | acrylonitrile butadiene styrene | ||
| material threaded bushing | die cast zinc | ||
| material filter insert | active carbon |
