| Weight (lbs.) | 12,55 | ||
| Use With | 14mm Pitch | ||
| Width (mm) | 20 | ||

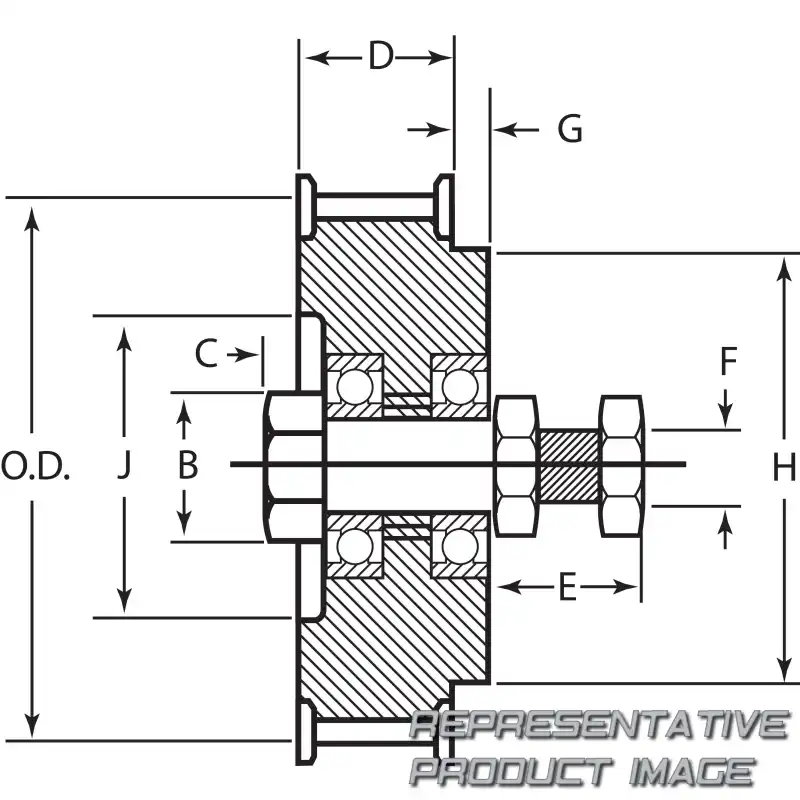

| G (in) | 1 | ||
| d (in) | 1,36 | ||
| b (in) | 2,55 | ||
| Belt Width (mm) | 20 | ||
| Bearing No. | 6.308 | ||
| Product # | 7720-01600 |
| Material | Steel | ||
| Markets/Applications | Recommended for drives with limited take-up or no center distance adjustment. Idlers may remain in a fixed location or may be adjustable to allow belt pre-tension take-up. | ||
| H (in) | 4,38 | ||
| E (in) | 2,25 | ||
| c (in) | 1 | ||
| F Threads (in) | 1 - 14 | ||
| Belt Width (in) | 0,78 | ||
| UPC | 072053190281 | ||
| Part # | PCGT IDLER 14M 30S 20 |
