| Brand | snr | ||

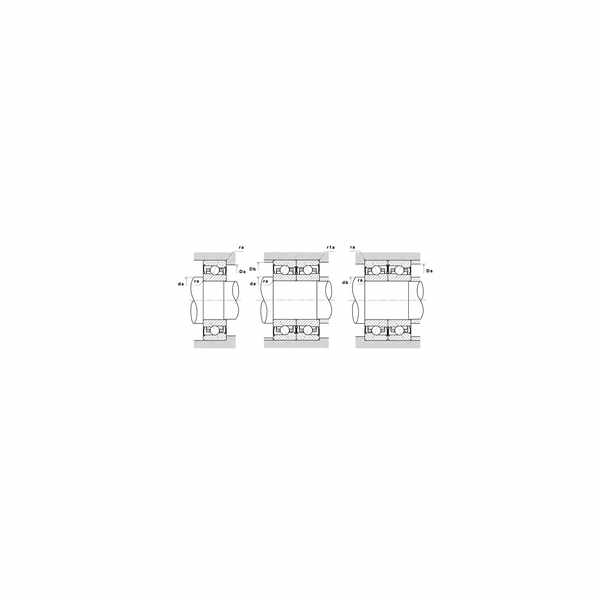

| r1a - Max fillet radius | 0,3 mm | ||
| Da max - Max shoulder diameter OR | 32,5 mm | ||
| da min - Min shoulder diameter IR | 19,5 mm | ||
| BRF - Rotational frequency – rolling element (60 rpm) | 3,155 Hz | ||
| BPFI - Over rolling frequency on inner (60 rpm) | 8,556 Hz | ||
| N lim - Grease lubrication limit speed | 52000 tr/min | ||
| Tmin - Min operating temperature | -20 °C | ||
| Axial rigidity | 42 N/µm | ||
| Preload level | 7 | ||
| f0 - Coefficient | 7,82 | ||
| C0 - Static load | 1,68 kN | ||
| mass | 0,037 kg | ||

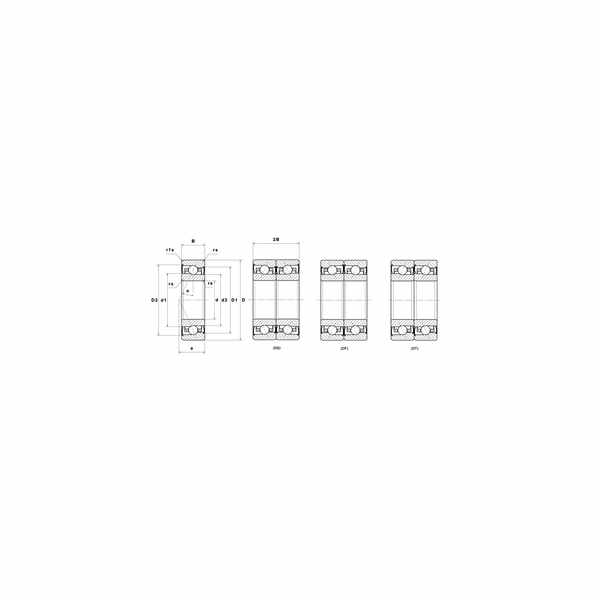

| rs - Min fillet radius | 0,3 mm | ||
| a - Charge load application point | 11 mm | ||
| D1 - Inner diameter outer ring | 30,45 mm | ||
| d1 - External diameter inner ring | 22,65 mm | ||
| D - External diameter | 35 mm |
| ra max - Max shaft & housing fillet radius | 0,3 mm | ||
| Db max - Max OR shoulder diameter | 32,5 mm | ||
| db min - Min IR shoulder diameter | 19,5 mm | ||
| FTF - Rotational frequency - cage (60 rpm) | 0,43 Hz | ||
| BSF - Over rolling frequency on rolling element (60 rpm) | 6,31 Hz | ||
| BPFO - Over rolling frequency on outer ring (60 rpm) | 6,444 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Radial rigidity | 93 N/µm | ||
| Preload value | 0,03 kN | ||
| Axial displacement K Factor | 1,03 | ||
| Cu - Fatigue limit load | 0,1 kN | ||
| C - Dynamic load | 3,55 kN | ||
| r1s - Min fillet radius | 0,3 mm | ||
| α - Contact angle | 25 ° | ||
| D2 - Inner diameter outer ring | 31,05 mm | ||
| d2 - External diameter inner ring | 21,4 mm | ||
| B - Bearing/Inner ring width | 10 mm | ||
| d - Internal diameter | 17 mm |
