| Brand | snr | ||

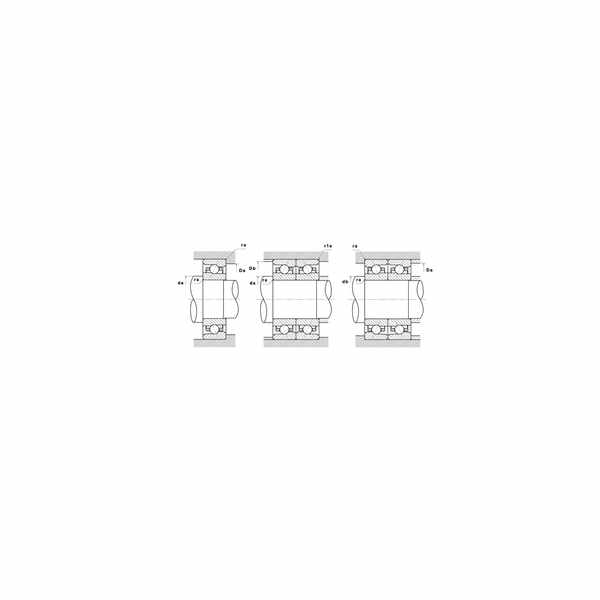

| r1a - Max fillet radius | 0,3 mm | ||
| Da max - Max shoulder diameter OR | 25,5 mm | ||
| da min - Min shoulder diameter IR | 14,5 mm | ||
| BRF - Rotational frequency – rolling element (60 rpm) | 2,924 Hz | ||
| BPFI - Over rolling frequency on inner (60 rpm) | 7,484 Hz | ||
| N lim - Grease lubrication limit speed | 68000 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| Radial rigidity | 66 N/µm | ||
| Preload value | 0,018 kN | ||
| Axial displacement K Factor | 1,23 | ||
| Cu - Fatigue limit load | 0,06 kN | ||
| C - Dynamic load | 2,17 kN | ||

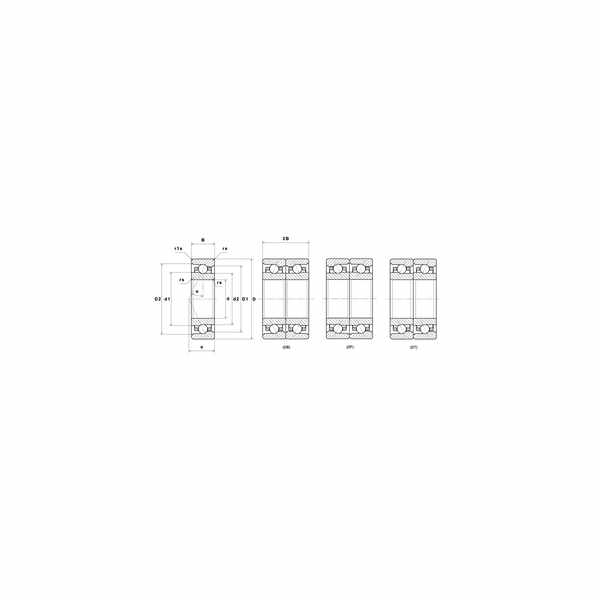

| r1s - Min fillet radius | 0,3 mm | ||
| α - Contact angle | 25 ° | ||
| D2 - Inner diameter outer ring | 23,75 mm | ||
| d2 - External diameter inner ring | 15,55 mm | ||
| B - Bearing/Inner ring width | 8 mm | ||
| d - Internal diameter | 12 mm |
| ra max - Max shaft & housing fillet radius | 0,3 mm | ||
| Db max - Max OR shoulder diameter | 25,5 mm | ||
| db min - Min IR shoulder diameter | 14,5 mm | ||
| FTF - Rotational frequency - cage (60 rpm) | 0,424 Hz | ||
| BSF - Over rolling frequency on rolling element (60 rpm) | 5,847 Hz | ||
| BPFO - Over rolling frequency on outer ring (60 rpm) | 5,516 Hz | ||
| N lim - Oil lubrication limit speed | 98000 tr/min | ||
| Tmin - Min operating temperature | -30 °C | ||
| Axial rigidity | 30 N/µm | ||
| Preload level | 7 | ||
| f0 - Coefficient | 7,70 | ||
| C0 - Static load | 0,91 kN | ||
| mass | 0,02 kg | ||
| rs - Min fillet radius | 0,3 mm | ||
| a - Charge load application point | 8 mm | ||
| D1 - Inner diameter outer ring | 22,95 mm | ||
| d1 - External diameter inner ring | 16,65 mm | ||
| D - External diameter | 28 mm |
