| Connection 3 Style | na | ||
| Connection 3 Tube O.D. (mm) | na | ||
| Connection 1 Tube O.D. (mm) | 16 | ||
| Connection 1 Style | Stand pipe adjustable | ||
| Serie | Heavy | ||
| Connection 2 Tube Outside Diameter | 06 to 42 mm | ||
| Optional Accessories | na, Pre-assembled with nut and EO-PSR cutting ring, Pre-assembled with EO-2 functional nut, Pre-assembled with nut and EO-DPR cutting ring | ||
| Maximum Operating Pressure | 16-80 MPa, 160-800 bar, 2321-11603 psi | ||
| Tipo de conexión | Bite Type, Soft Seal Bite Type | ||
| Materials of Construction | Steel zinc plated (CrVI-free), Stainless steel |

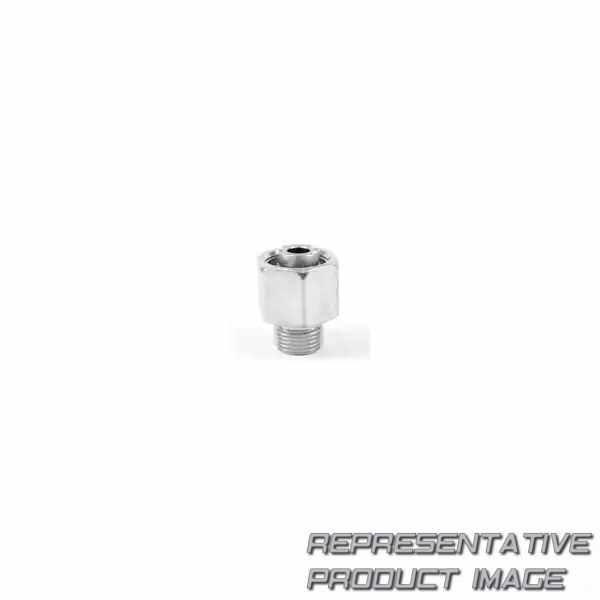

| Shape | Tube end reducer | ||
| Fitting Material | Steel, Chromium-6 Free | ||
| Connection 2 Tube O.D. (mm) | 6 | ||
| Pre-Installed Optional Accessories | Pre-assembled with nut and EO-PSR cutting ring | ||
| Connection 1 Tube Outside Diameter | 06 to 42 mm | ||
| Connection 3 Tube Outside Diameter | 06 to 42 mm | ||
| Tube Outside Diameter | 6-42 mm | ||
| Application | Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation | ||
| Specifications Met | DIN ISO 8434 |
