| Brand | snr | ||
| BRF - Rotational frequency – rolling element (60 rpm) | 2,348 Hz | ||
| BPFI - Over rolling frequency on inner (60 rpm) | 5,418 Hz | ||
| Recommended tightening torque for set screw | 5,5 N-m | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 7,88 kN | ||

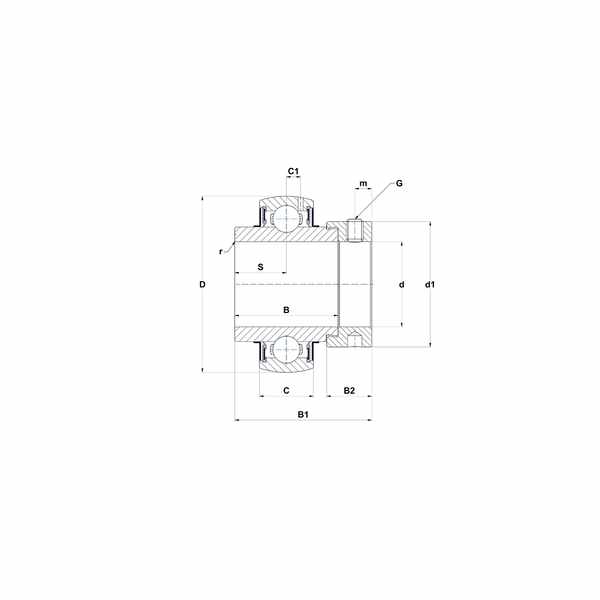

| SW - Wrench size | 3 mm | ||
| S - Distance front side/bearing centre | 17,4 mm | ||
| m - Distance to set screw | 5 mm | ||
| D - Outer diameter of OR | 52 mm | ||
| d - Shaft diameter | 25 mm | ||
| C - Width of Outer Ring | 17 mm | ||
| B1 - Overall width Inner Ring | 44,3 mm |
| FTF - Rotational frequency - cage (60 rpm) | 0,398 Hz | ||
| BSF - Over rolling frequency on rolling element (60 rpm) | 4,697 Hz | ||
| BPFO - Over rolling frequency on outer ring (60 rpm) | 3,582 Hz | ||
| mass | 0,25 kg | ||
| Operating temperature min. | -40 °C | ||
| C - Dynamic load rating | 14 kN | ||
| f0 - Factor | 14 | ||
| r - Radius Inner Ring | 0,60 | ||
| G - Set screw size | M6x1 | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 37,4 mm | ||
| C1 - Distance center of OR to center of lubrication zone | 4,3 mm | ||
| B2 - Width of eccentric locking collar/nut | 13,5 mm | ||
| B - Width of Inner Ring | 34,8 mm |
