Festo

1574614 Festo

1574614-1
1574614-2

FESTO 1574614 Servomotor

EMMS-AS-140-SK-HS-RR

$3.394,33 $5.374,36 -36%
Stock Limitado solo disponible bajo consulta

Especificaciones

Serie (EMMS) Motor
Motor type (AS) AC synchronous
Flange size, motors (140) 140
Length (S) Short
Output shaft (K) Shaft to DIN 6885
Winding (HS) High voltage, standard
Conexión eléctrica (R) Angled connector, adjustable
Measuring unit (R) Resolver
Brake None
Degree of protection, electrical system Standard
Energy efficiency ENEFF (CN) / Class 2
Mean time to failure (MTTF), subcomponent 114 years, rotor position sensor
Rotor position encoder interface SIN/COS analogue signals
Permissible radial shaft load 780 N
Peso del producto 9.840 g
Phase-phase winding inductance 20,5 mH
Voltage constant, phase-to-phase 130,69 mVmin
Peak current 15 A
Nominal power rating of motor 2.600 W
Nominal rotary speed 2.600 rpm
Par de apriete nominal 9,55 Nm
Number of pole pairs 6
Nominal voltage DC 565 V
Marcado CE (véase la declaración de conformidad) To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
Conformidad PWIS VDMA24364-B2-L
Nota sobre el material RoHS-compliant
Featherkey shaft type DIN 6885 A 8 x 7 x 40
Temperature monitoring PTC resistor
Insulation protection class F
Humedad relativa del aire 0 - 90%
Temperatura ambiente -40 °C ... 40 °C
Mean time to dangerous failure (MTTFd), subcomponent 228 years, rotor position sensor
Rotor position sensor, encoder measuring principle Inductive
Rotor position sensor Resolver
Permissible axial shaft load 200 N
Total mass moment of inertia of output 8 kgcm²
Phase-phase winding resistance 3,39 Ohm
Motor constant 2,166 Nm/A
Nominal motor current 4,4 A
Revoluciones máx. 3.060 rpm
Peak torque 25,6 Nm
Standstill torque 11,2 Nm
Type of winding switch Star inside
CE marking (see declaration of conformity) To UK instructions for EMC To UK regulations for electrical equipment To UK RoHS instructions
Certificación RCM trademark c UL us - Recognized (OL)
Clase de resistencia a la corrosión CRC 2 - Moderate corrosion stress
Electrical connector system Plug
Grado de protección IP54
Rating class as per EN 60034-1 S1
Conforme a la norma IEC 60034
Temperatura de almacenamiento -20 °C ... 60 °C

Productos relacionados

1574608
FESTO
$3.289,82
1574632
FESTO
$3.355,61
1574638
FESTO
$3.394,33
1704735
FESTO
$3.145,06
1562919
FESTO
$4.254,60
1574633
FESTO
$4.309,54
1574634
FESTO
$3.198,22

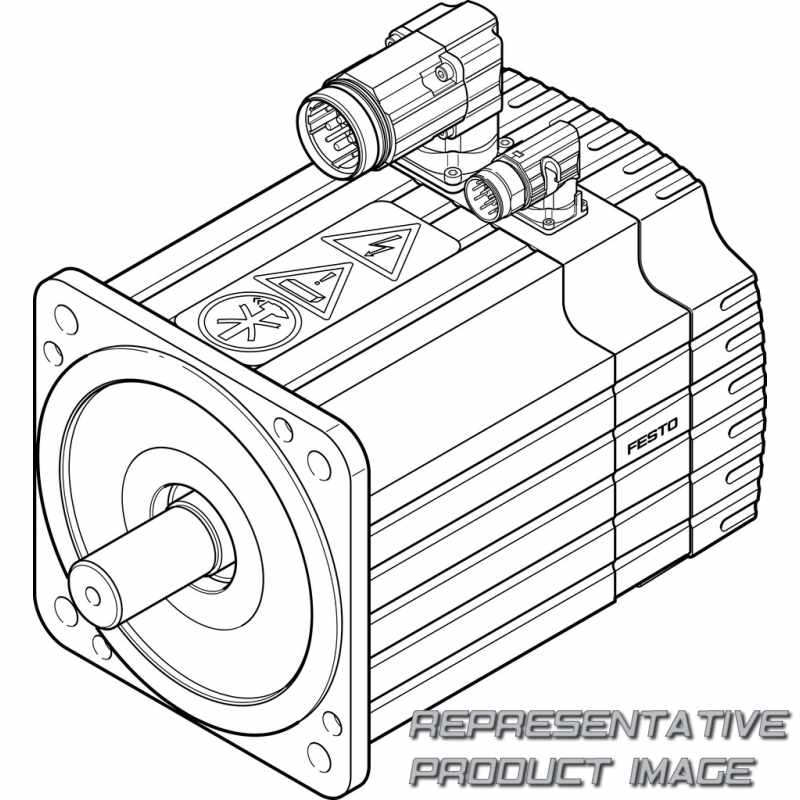

1584913
