SMC CQ2K
97 Productos

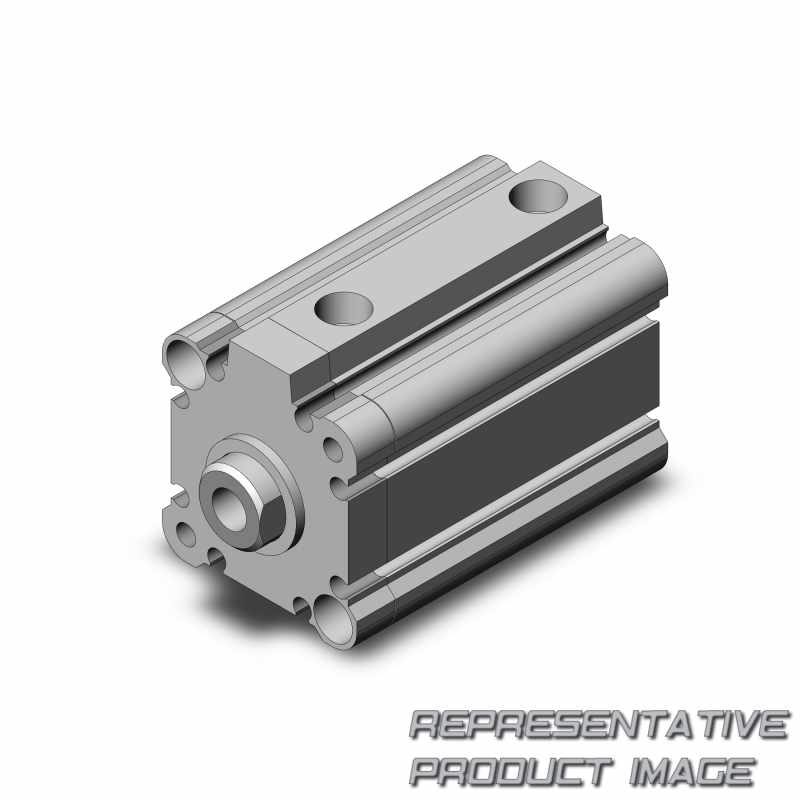

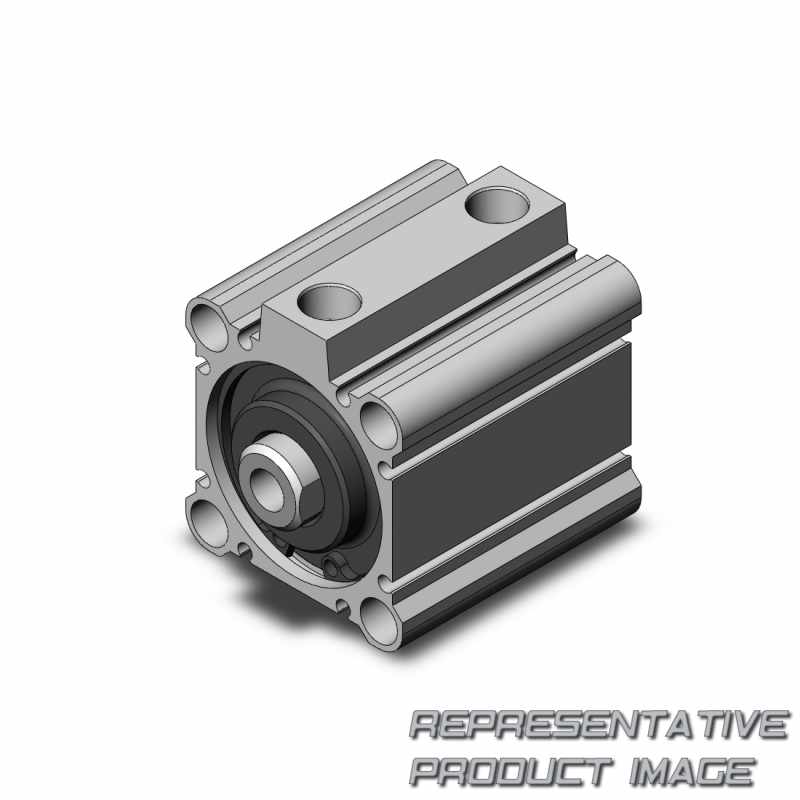

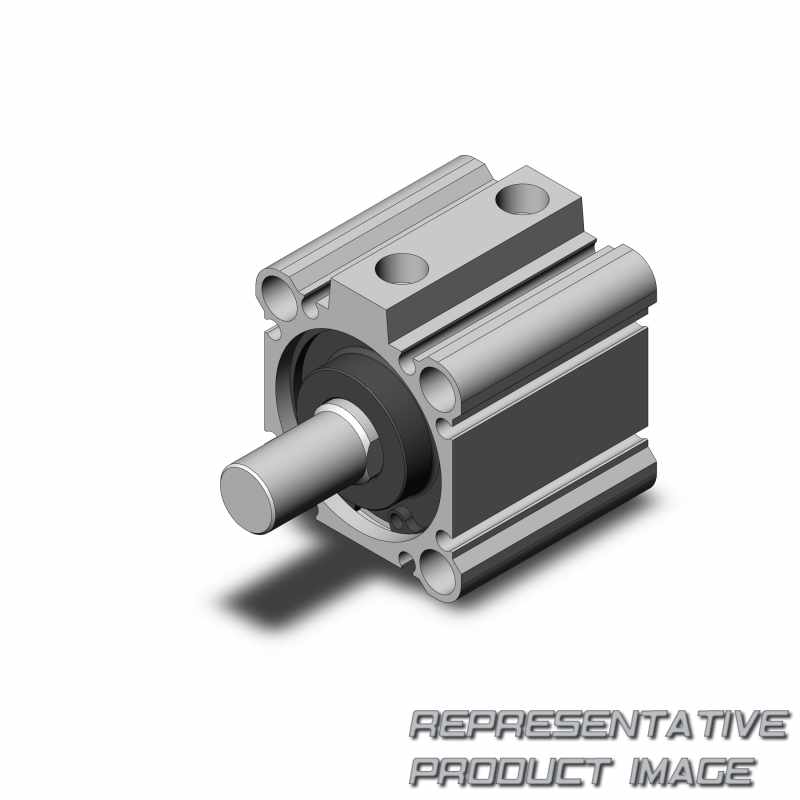

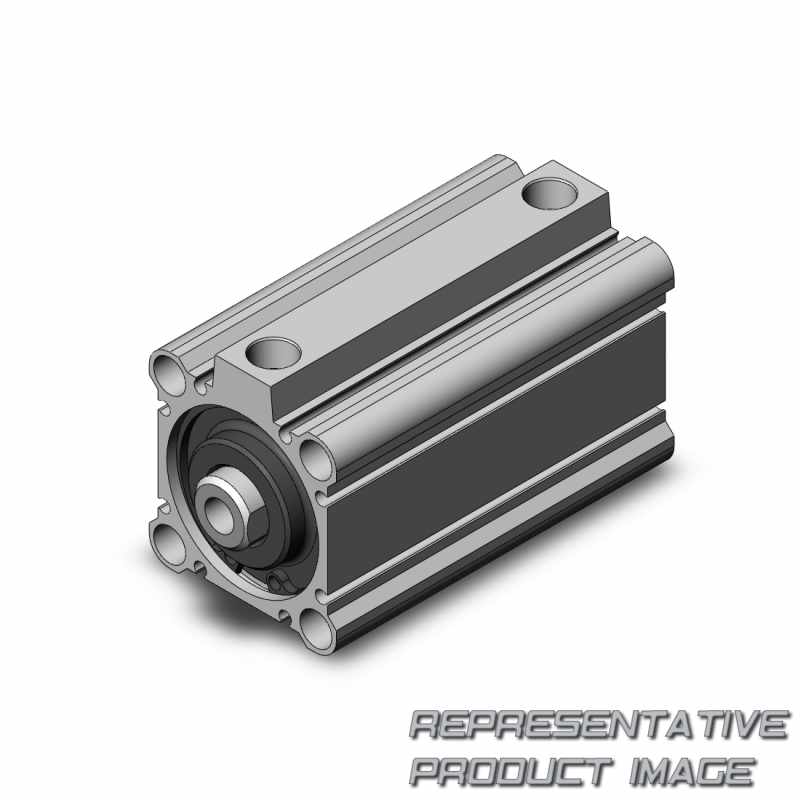

Descubre todas las configuraciones disponibles para la serie de produtos SMC CQ2K CQ2K Compact Cylinder: Non-rotating Rod Double Acting, Single Rod. Encuentra el producto correcto filtrando por Bore Size y Peso.
Códigos del producto CQ2K
| Serie | Formato de número de catálogo | Descripción |
|---|---|---|
| CQ2K | CQ2K- - -[0-9]+-D-Z | CQ2K Compact Cylinder: Non-rotating Rod Double Acting, Single Rod |
Códigos del producto para el catálogo CQ2K,
CQ2K- - -[0-9]+-D-Z
| 001 | Series |
|---|---|
| CQ2K | CQ2K Compact Cylinder: Non-rotating Rod Double Acting, Single Rod |
| 002 | Mounting |
| B | Through-hole (Standard) |
| A | Both ends tapped |
| L | Foot |
| F | Rod flange |
| G | Head flange |
| D | Double clevis |
| 003 | Type |
| H | Air-hydro |
| Pneumatic | |
| 004 | Bore Size |
| 12 | 12 mm |
| 16 | 16 mm |
| 20 | 20 mm |
| 25 | 25 mm |
| 32 | 32 mm |
| 40 | 40 mm |
| 50 | 50 mm |
| 63 | 63 mm |
| 80 | 80 mm |
| 100 | 100 mm |
| 005 | Port thread type |
|---|---|
| TN | NPT |
| TF | G |
| F | Built-in one-touch fittings |
| M thread or RC | |
| 006 | Cylinder stroke (mm) |
| [0-9]+ | millimeter stroke |
| 007 | Action |
| D | Double acting |
| 008 | Body option |
| F | With boss on head end |
| C | With rubber bumper |
| M | Non-relieving type |
| Standard (Rod end female thread) | |
| 009 | Auto switch mounting groove |
| Z | 2 or 4 surfaces |
