SMC CG5
24 Productos
Descubre todas las configuraciones disponibles para la serie de produtos SMC CG5 CG5-S Stainless Steel Cylinder. Encuentra el producto correcto filtrando por Mounting, Tipo, Bore Size, Port thread type, Material de Sellado y Peso.
Códigos del producto CG5
| Serie | Formato de número de catálogo | Descripción |
|---|---|---|
| CG5 | CG5- - - -S- -[0-9]+ | CG5-S Stainless Steel Cylinder |
Códigos del producto para el catálogo CG5,
CG5- - - -S- -[0-9]+
| 001 | Series |
|---|---|
| CG5 | CG5-S Stainless Steel Cylinder |
| 002 | Mounting |

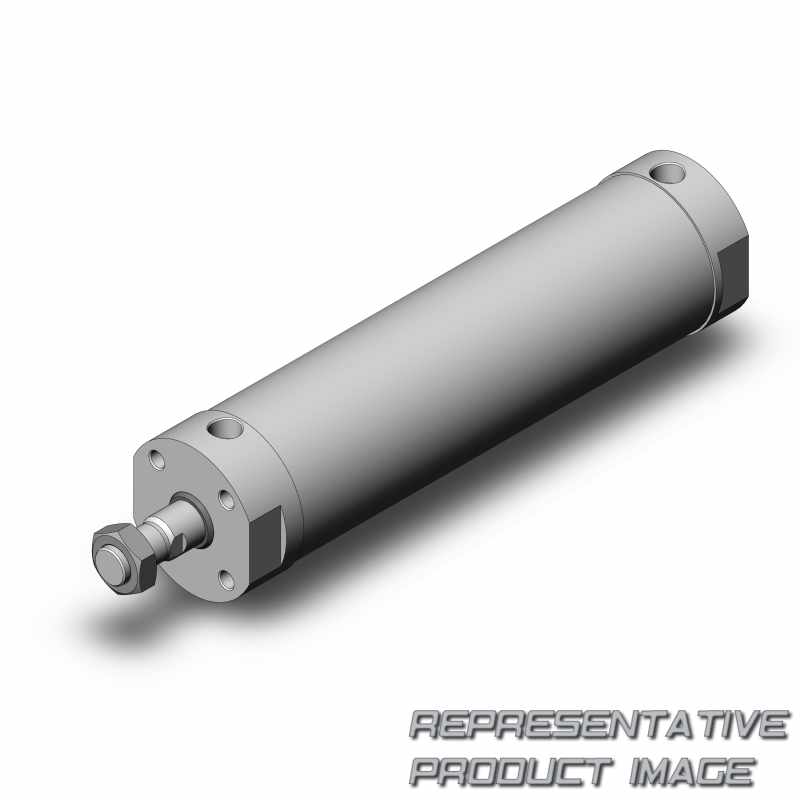

| B | Through-hole/Both ends tapped common (Standard) |
| L | Foot style |
| F | Rod side flange style |

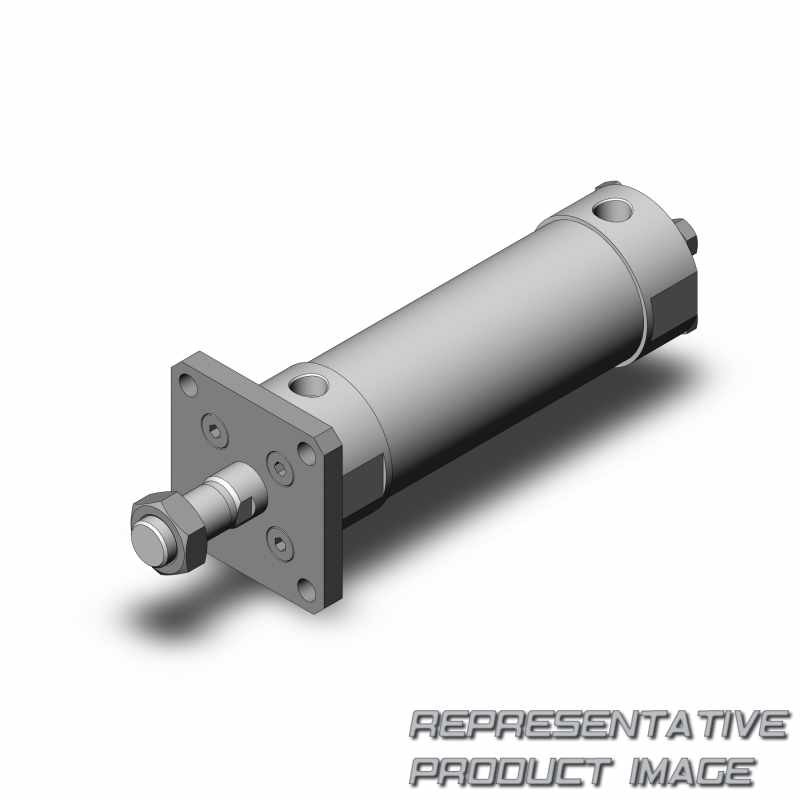

| G | Head side flange style |
| E | Integral clevis type |
| 003 | Type |
| N | Non-lube, rubber bumper |

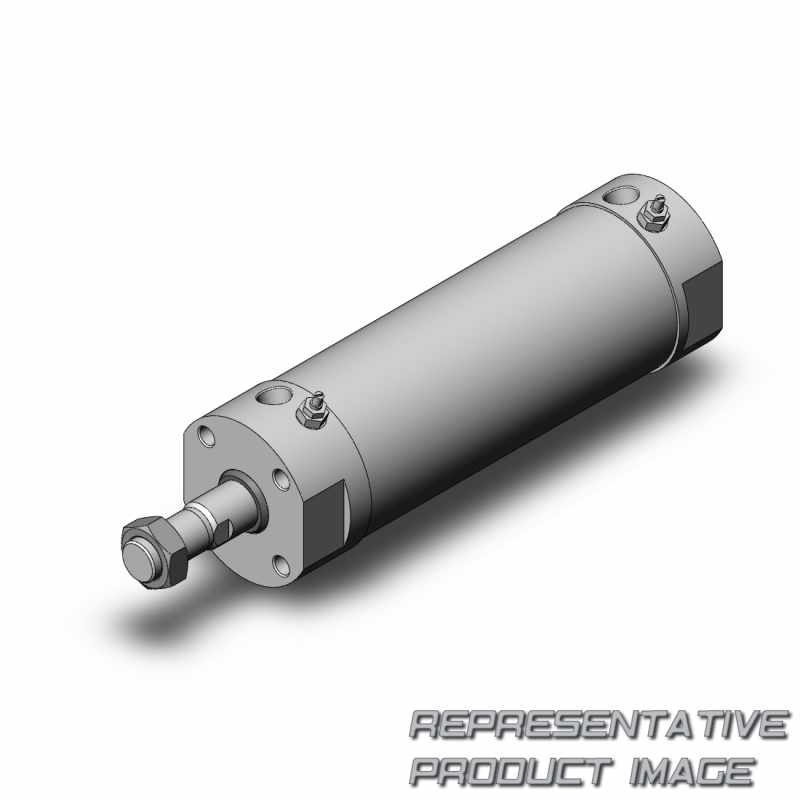

| A | Non-lube, air cushion |
| 004 | Bore Size |
| 50 | 50 mm |
| 63 | 63 mm |
| 80 | 80 mm |
| 100 | 100 mm |
| 005 | Port thread type |
|---|---|
| TF | G |
| TN | NPT |
| Rc | |
| 006 | Stainless steel cylinder |
| S | S Stainless steel cylinder |
| 007 | Seal material |
| R | NBR |
| V | FKM |
| 008 | Cylinder stroke (mm) |
| [0-9]+ | millimeter stroke |
