SMC CDG5
76 Productos

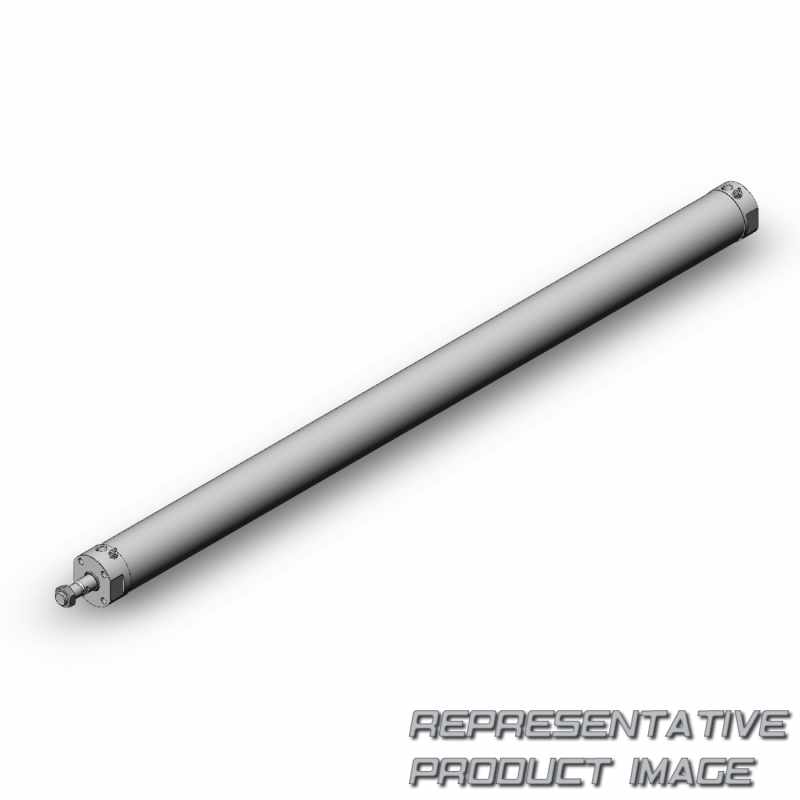

Descubre todas las configuraciones disponibles para la serie de produtos SMC CDG5 CDG5-S Stainless Steel Cylinder with Auto Switch. Encuentra el producto correcto filtrando por Mounting, Tipo, Bore Size, Port thread type y Material de Sellado.
Códigos del producto CDG5
| Serie | Formato de número de catálogo | Descripción |
|---|---|---|
| CDG5 | CDG5- - - -S- -[0-9]+ | CDG5-S Stainless Steel Cylinder with Auto Switch |
Códigos del producto para el catálogo CDG5,
CDG5- - - -S- -[0-9]+
| 001 | Series |
|---|---|
| CDG5 | CDG5-S Stainless Steel Cylinder with Auto Switch |
| 002 | Mounting |
| B | Through-hole/Both ends tapped common (Standard) |
| L | Foot style |
| F | Rod side flange style |
| G | Head side flange style |
| E | Integral clevis type |
| 003 | Type |
| N | Non-lube, rubber bumper |
| A | Non-lube, air cushion |
| 004 | Bore Size |
| 50 | 50 mm |
| 63 | 63 mm |
| 80 | 80 mm |
| 100 | 100 mm |
| 005 | Port thread type |
| TF | G |
| TN | NPT |
| Rc | |
| 006 | Stainless steel cylinder |
|---|---|
| S | S Stainless steel cylinder |
| 007 | Seal material |
| R | NBR |
| V | FKM |
| 008 | Cylinder stroke (mm) |
| [0-9]+ | millimeter stroke |
| 009 | Auto switch type/Band mount type |
| G5BAL | D-G5BAL (water resistant) |
| Without auto switch (built-in magnet) | |
| 010 | Number of auto switches |
| n | n pcs. |
| S | 1 pc. |
| 2 pcs. |
