SMC CD85
404 Productos
Descubre todas las configuraciones disponibles para la serie de produtos SMC CD85 CD85 Standard/Non-rotating Type Double Acting, Single/Double Rod, Bult-in magnet, CD85 Standard/Non-rotating Type Double Acting, Single/Double Rod, Bult-in magnet. Encuentra el producto correcto filtrando por Rod type, Tipo, Mounting style, Bore Size, Cushion, Action, Auto switch mounting type y Peso.
Códigos del producto CD85
| Serie | Formato de número de catálogo | Descripción |
|---|---|---|
| CD85 |
CD85- -[0-9]+-
CD85- -[0-9]+- |

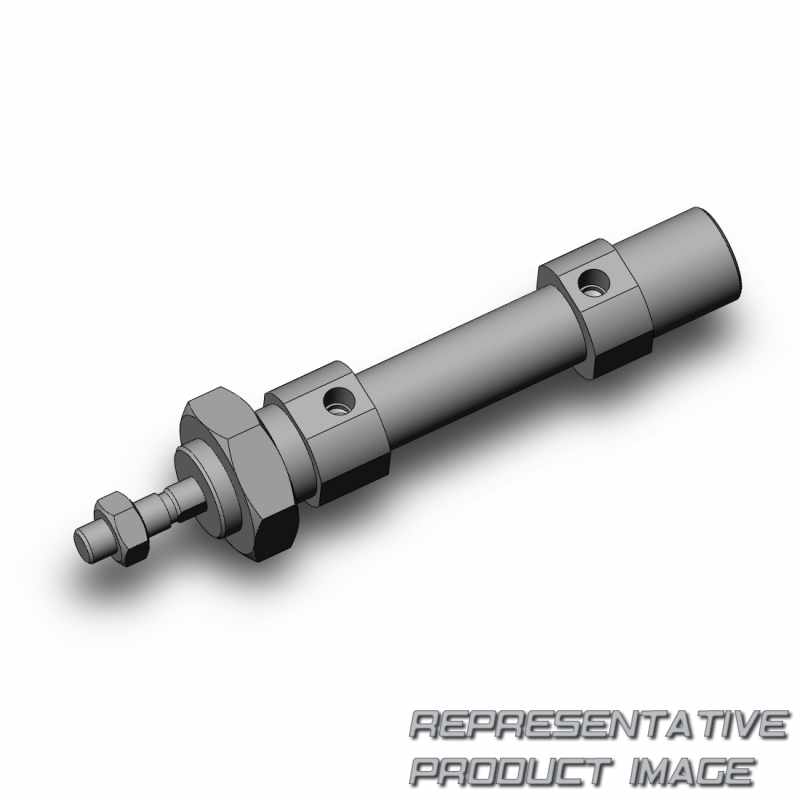

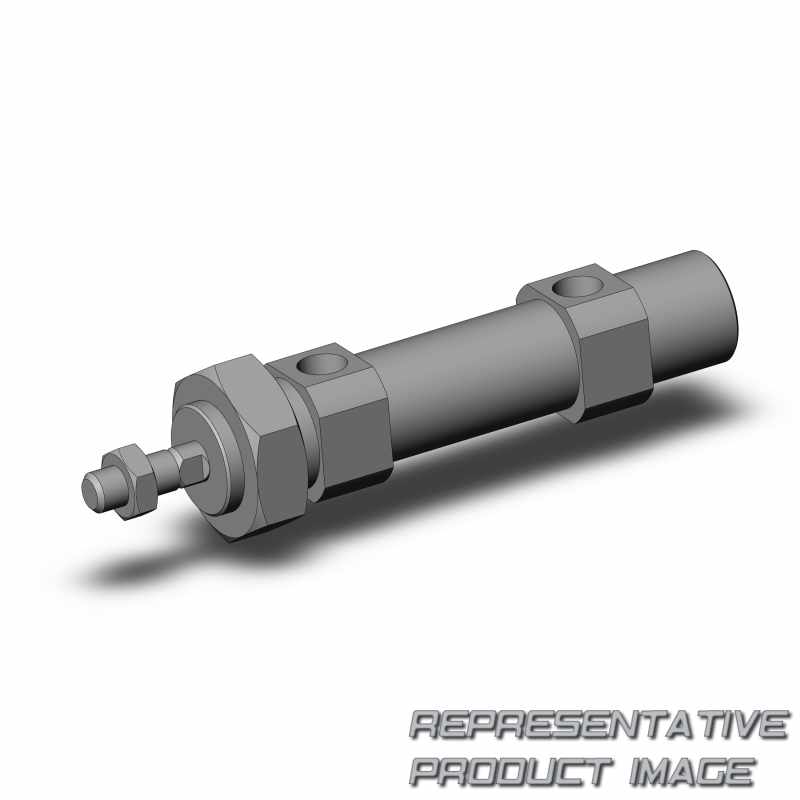

CD85 Standard/Non-rotating Type Double Acting, Single/Double Rod, Bult-in magnet
CD85 Standard/Non-rotating Type Double Acting, Single/Double Rod, Bult-in magnet |
Códigos del producto para el catálogo CD85,
CD85- -[0-9]+-
,
CD85- -[0-9]+-
| 001 | Series |
|---|---|
| CD85 | CD85 Standard/Non-rotating Type Double Acting, Single/Double Rod, Bult-in magnet |
| 002 | Rod type |
| Single Rod | |
| WE | Double Rod |
| 003 | Type |
| K | Non-rotating rod |
| Standard | |
| 004 | Mounting style |
| Standard | |
| E | Double end |
| F | Front nose |
| N | Basic integrated clevis |
| Y | Front nose in line port |
| 005 | Bore Size |
| 8 | 8 mm |
| 10 | 10 mm |
| 12 | 12 mm |
| 16 | 16 mm |
| 20 | 20 mm |
| 25 | 25 mm |
| 006 | Cylinder stroke (mm) |
| [0-9]+ | millimeter stroke |
| 007 | Cushion |
|---|---|
| Rubber cushion (Standard) | |
| C | Air cushion |
| 008 | Rod boot |
| Without rod boot | |
| J | Nylon tarpaulin one side |
| JJ | Nylon tarpaulin both sides |
| K | Heat resistant tarpaulin one side |
| KK | Heat resistant tarpaulin both sides |
| 009 | Action |
| Without action | |
| S | Single acting, Spring return |
| T | Single acting, Spring extended |
| 010 | Auto switch mounting type |
| A | Rail mounting |
| B | Band mounting |
| 011 | Option |
| None | |
| R | Stainless steel piston rod, rod end nut and mounting nut |
| R2 | Stainless steel piston rod and rod end nut |
