| Weight (lbs.) | 0,63 | ||
| Recommended For | Multi-Duty® Sheaves | ||
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. | ||
| Thickness (in) | 0,41 | ||
| Angle. | 36 | ||
| Top Width (in) | 0,51 | ||
| Outside Circumference (in) | 81,47 | ||
| Effective Length (mm) | 2.034 | ||

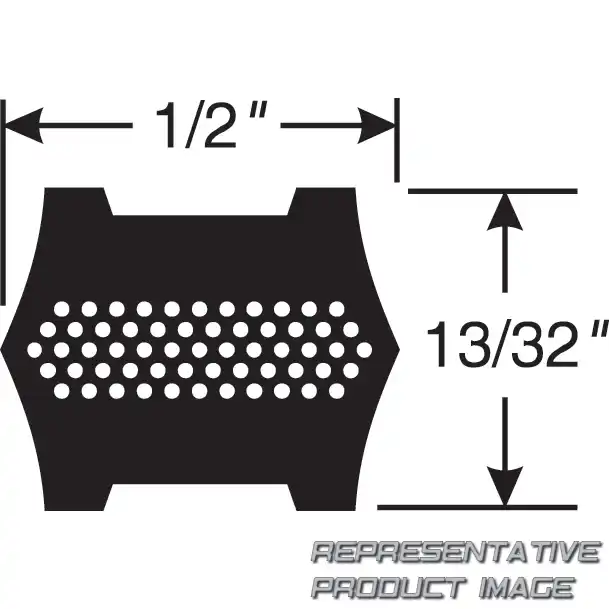

| Cross Section | AA | ||
| Product # | 9052-00078 |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. | ||
| Material | CR | ||
| Thickness (mm) | 10 | ||
| Specifications | Cord Type: PES |
||
| Top Width (mm) | 13 | ||
| Outside Circumference (mm) | 2.069 | ||
| Notched | false | ||
| Effective Length (in) | 80,09 | ||
| UPC | 072053701852 | ||
| Part # | AA78 DUBLV |
