| Weight (lbs.) | 27,06 | ||
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. | ||
| Thickness (mm) | 25 | ||
| Specifications | Cord Type: AR |
||
| Top Width (mm) | 57 | ||
| Strand | 2 | ||
| Outside Circumference (in) | 336,10 | ||
| Effective Length (mm) | 8.509 | ||

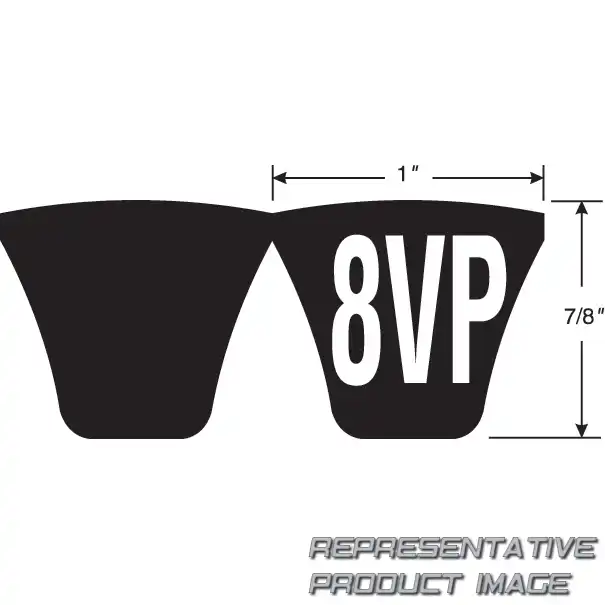

| Cross Section | 8VP | ||
| Product # | 9182-02335 |
| WARNING: | Do NOT use with backside idlers. | ||
| Material | CR | ||
| Thickness (in) | 0,97 | ||
| Angle. | 40 | ||
| Top Width (in) | 2,25 | ||
| Outside Circumference (mm) | 8.537 | ||
| Notched | false | ||
| Effective Length (in) | 335 | ||
| UPC | 770075333326 | ||
| Part # | 8VP3350/2 PREDATOR POWERBAND |
