| material protective guard | steel | ||
| seal material | acrylonitrile butadiene rubber | ||
| Material de la carcasa | die-cast aluminum | ||
| Función | can be assembled into blocks | ||
| protective guard | with protective guard | ||
| type of filling | manual oil filling | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 16 bar | ||
| mounting orientation | vertical | ||
| compressed air connection | g 3/4 | ||

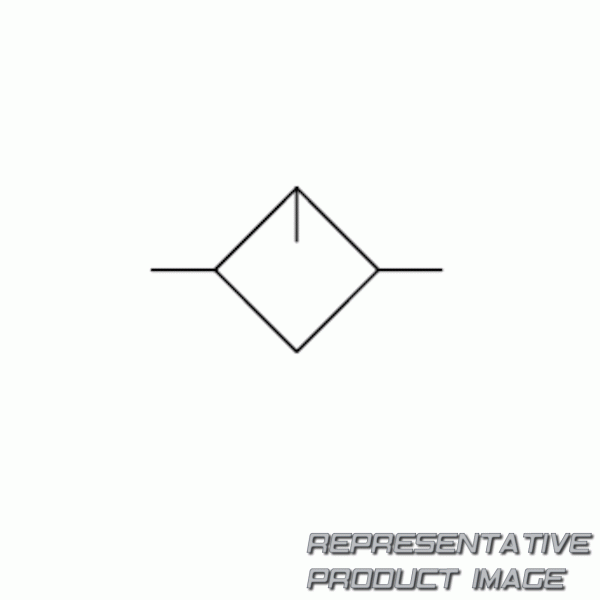

| parts | lubricator |
| material reservoir | polycarbonate | ||
| material front plate | acrylonitrile butadiene styrene | ||
| Peso | 1.6 kg | ||
| oil dosing at 1000 l/min | 1-2 drops | ||
| lubricator reservoir volume | 450 cm³ | ||
| Medio | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 0.5 bar | ||
| nominal flow qn | 18000 l/min | ||
| reservoir | reservoir, polycarbonate, with metal protective guard |
