| Connection 1 Thread Size (metric) | G1/8 | ||

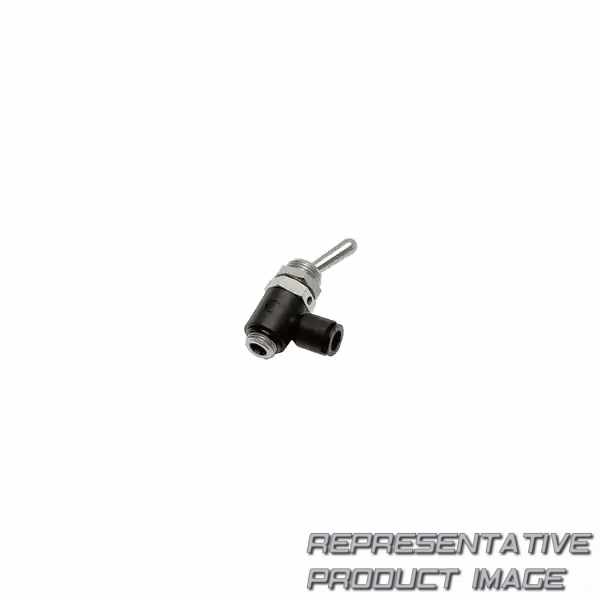

| Shape | 3/2 manual switch-operated valve supply | ||
| Body Material | TECHNICAL POLYMER | ||
| Connection 2 Tube O.D. (mm) | 6 | ||
| O-Ring Material | NBR | ||
| Vacuum Pressure Rating | 755 mm-Hg | ||
| Peso | 0.023 kg | ||
| Media | Compressed air |
| Handle | NICKEL PLATED BRASS | ||
| Diameter Nominal (DN) | na | ||
| Gripping Ring | STAINLESS STEEL | ||
| Connection 1 Thread Style | BSPP | ||
| Maximum Operating Pressure | 10 barg | ||
| Quantity per Box | 1 | ||
| Application | Robotics, Conveyors, Textile, Plastics Engineering, Printing, Pneumatics, Packaging | ||
| Specifications Met | DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED) |
